Dell Embedded Box PC 5000 - Procedure

Procedure
1 Remove the screws that secure PCI/PCIe cards to the chassis.

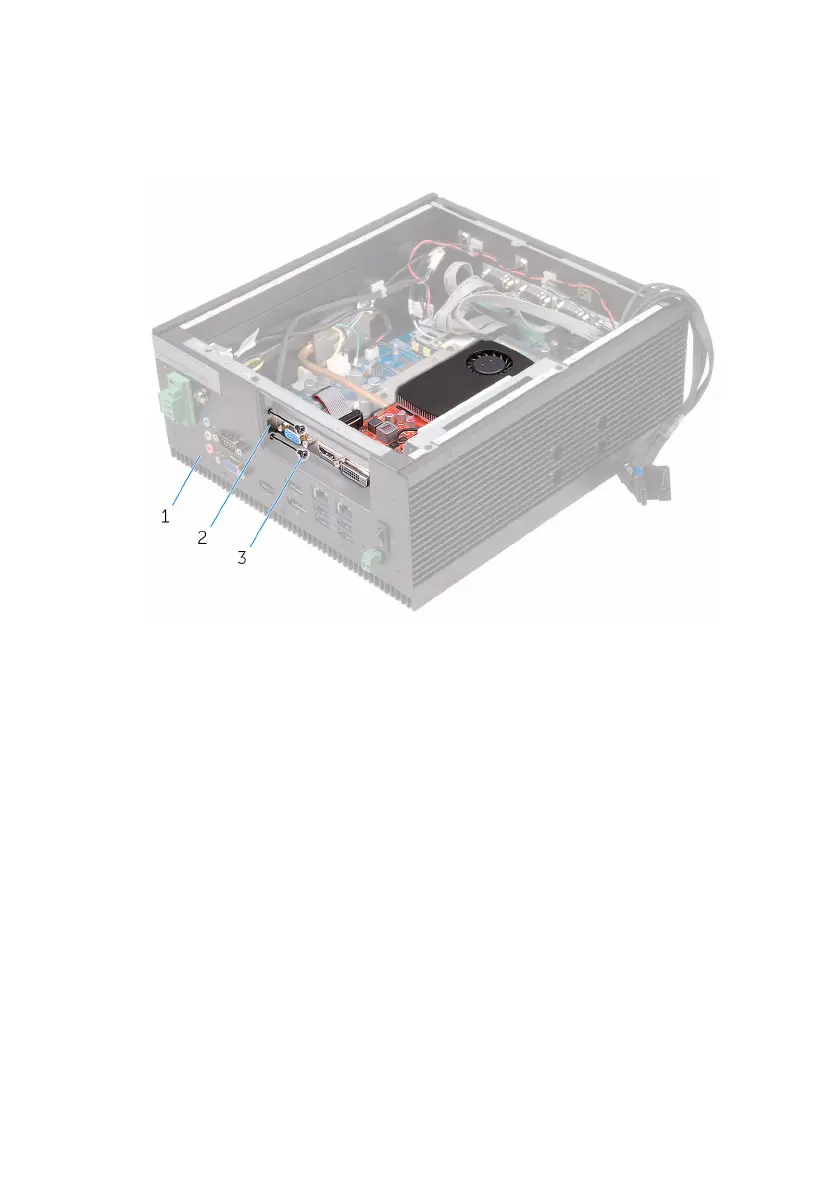

1 chassis 2 PCIe card
3 M3x5 countersunk screws
(2)
2 Remove the screw that secures the PCI/PCIe filler-plate bracket to the
chassis.
3 Remove the bracket from the chassis.
42
