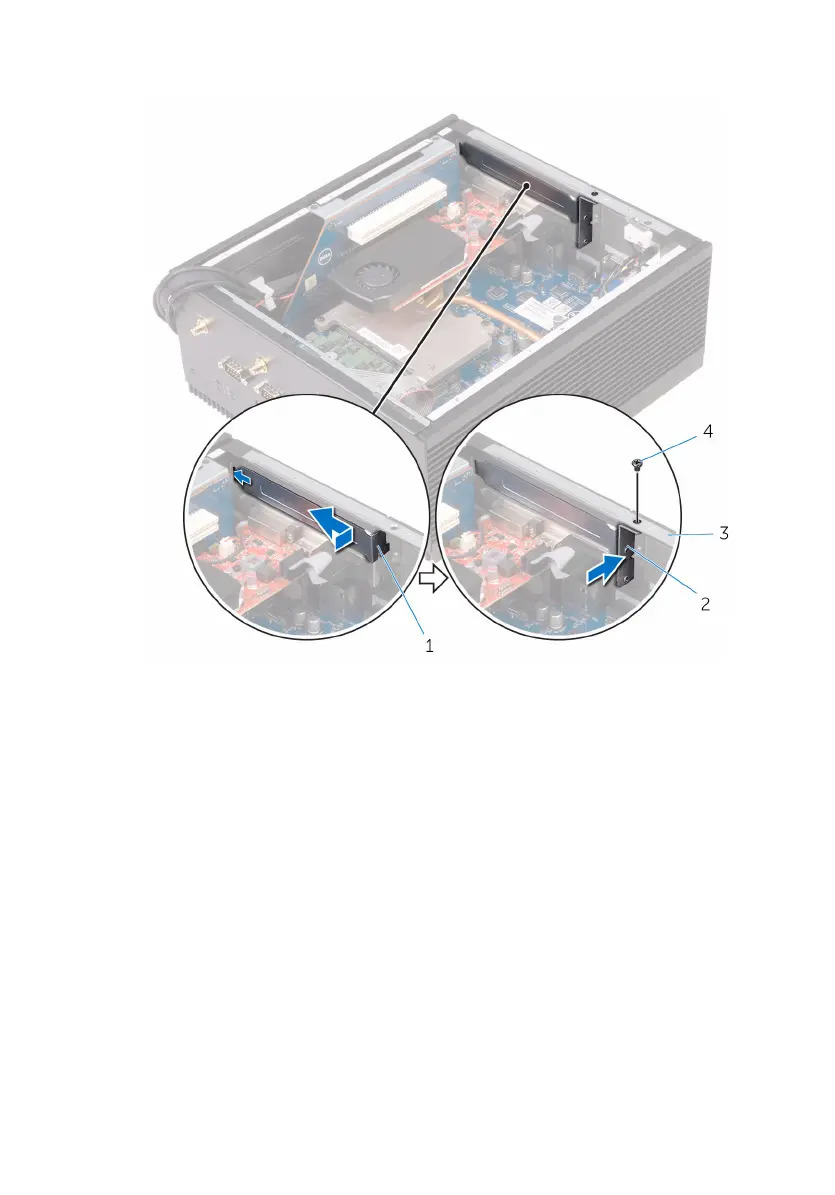

4 Replace the screw that secures the bracket to the chassis.

1 filler plate 2 fillet-plate bracket

3 chassis 4 M3x5 countersunk screw
