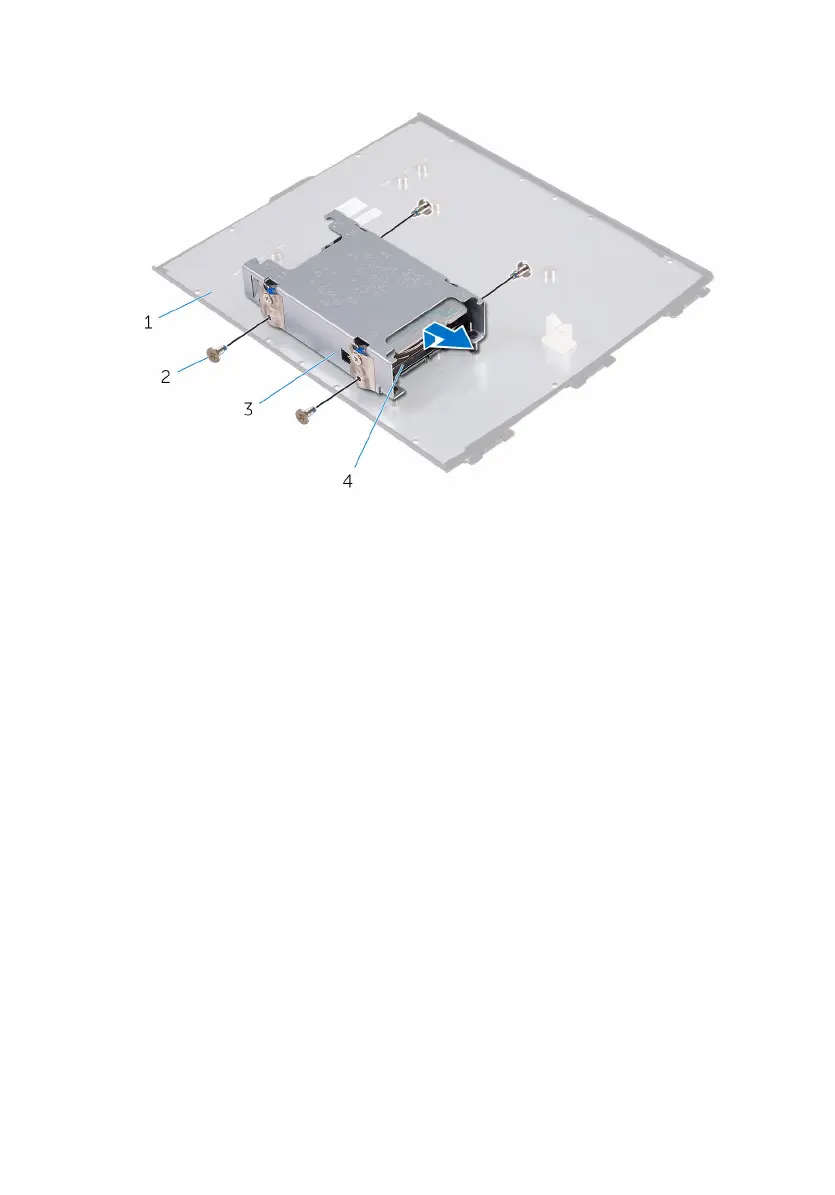

2 Lift and slide the bottom drive out of the hard-drive cage.

1 back cover 2 STDF (L5.1), M3x3

screws(4)

3 drive cage 4 hard drive/solid-state drive
