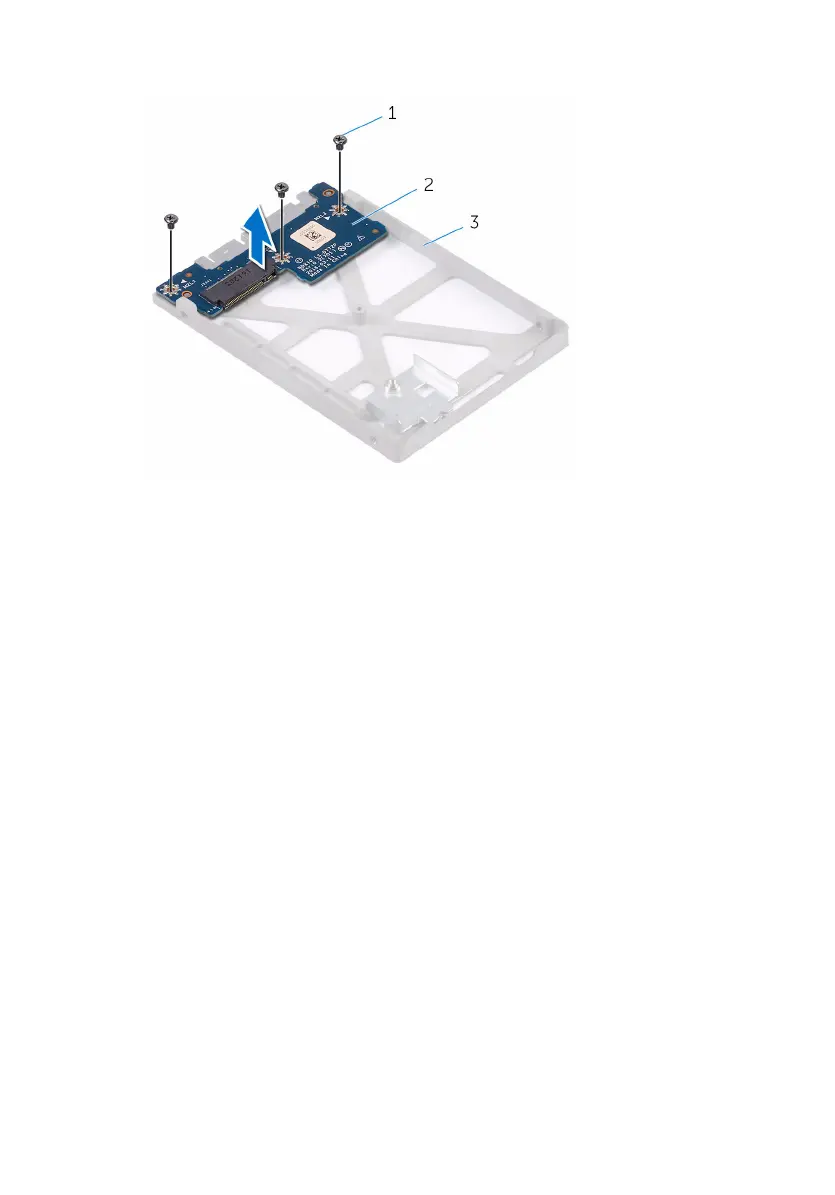

2 Lift the interposer board off the solid-state drive card bracket.

1 M2x3 screws (3) 2 interposer board

3 solid-state drive card

bracket.
