Dell Embedded Box PC 5000

To Next Page

To Previous Page

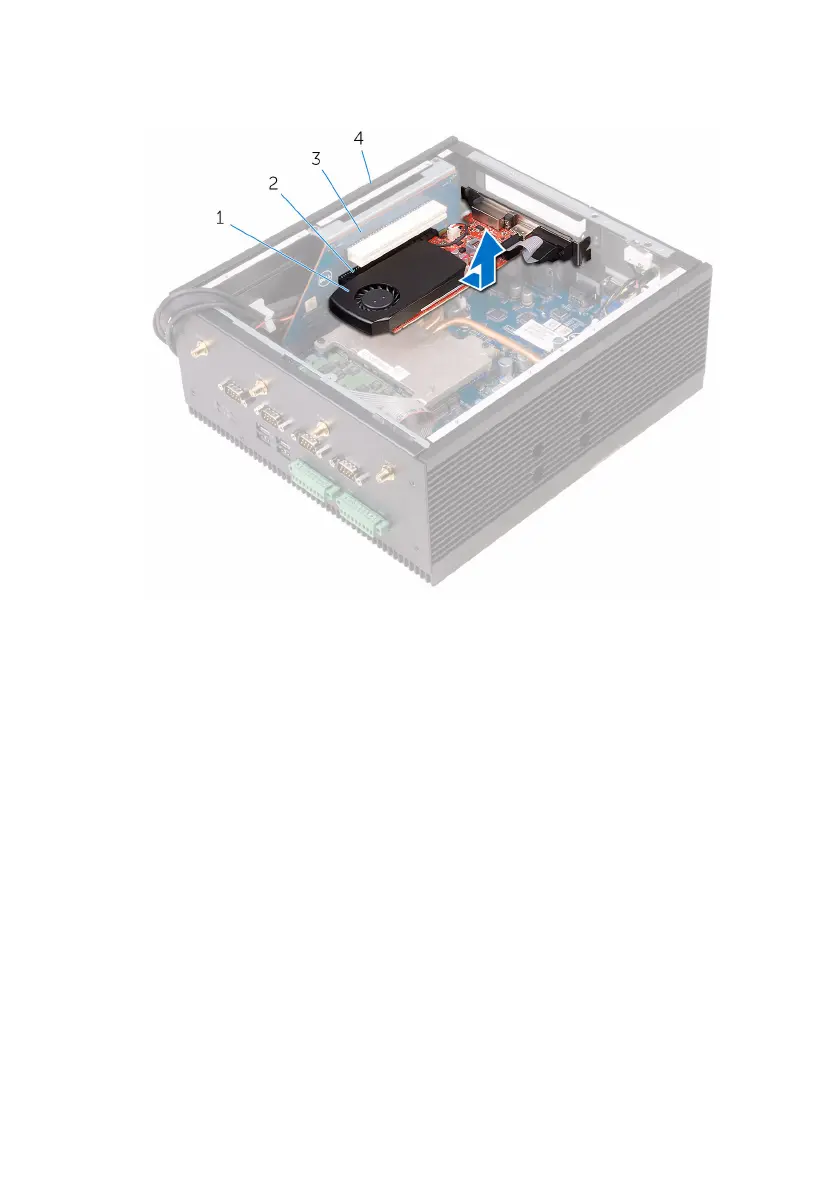

5 Release the PCI/PCIe card from the PCI/PCIe card slot on the riser card

and lift it off the chassis.

1 PCIe card 2 PCIe card-slot

3 riser card 4 chassis
