Dell Embedded Box PC 5000

To Next Page

To Previous Page

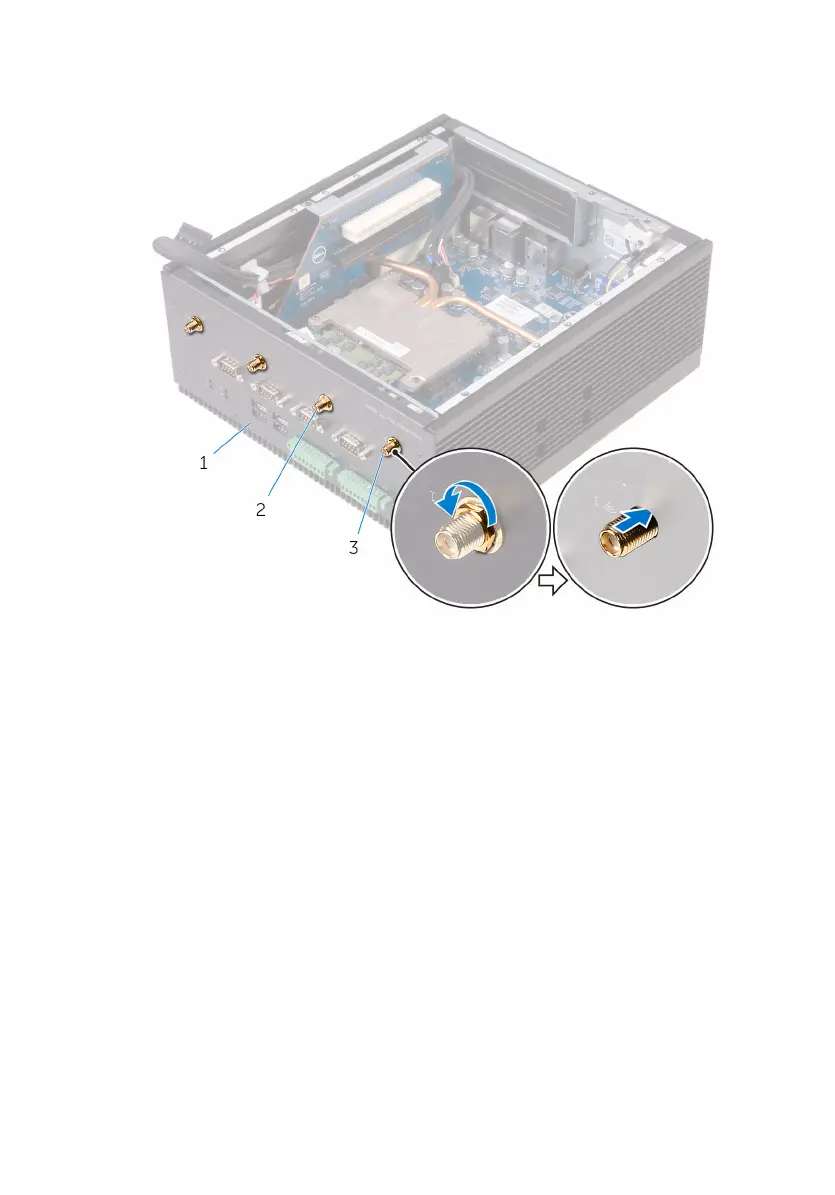

2 Push the WLAN-antenna connectors through the chassis.

1 chassis 2 WLAN-antenna

connectors two

3 WLAN-antenna connectors

one

3 Disconnect the antenna cables from the WLAN card.

4 Remove the WLAN-antenna cables from the WLAN-cable routing guides

on the chassis.
