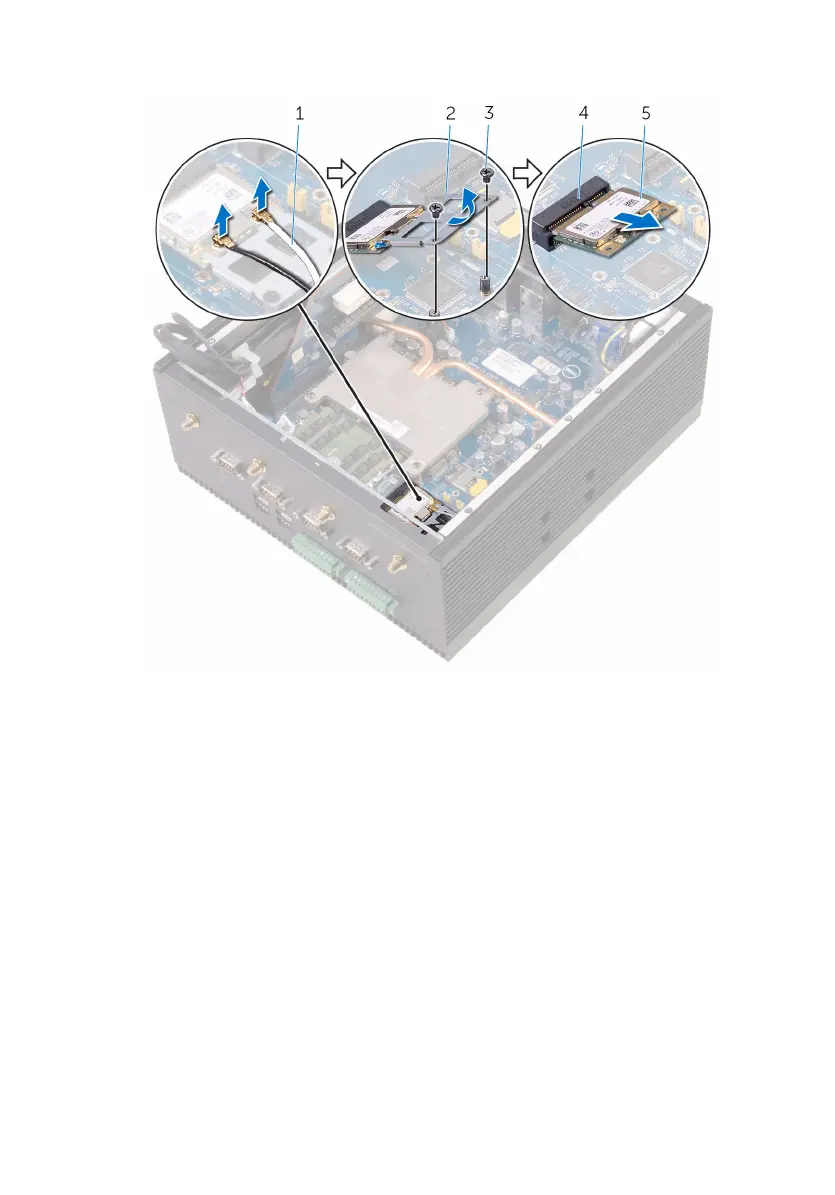

4 Slide and remove the WLAN card from the mPCIE2 slot.

1 WLAN-antenna cables (2) 2 WLAN-card bracket

3 M2x3 screws (2) 4 mPCIE2 slot

5 WLAN card
