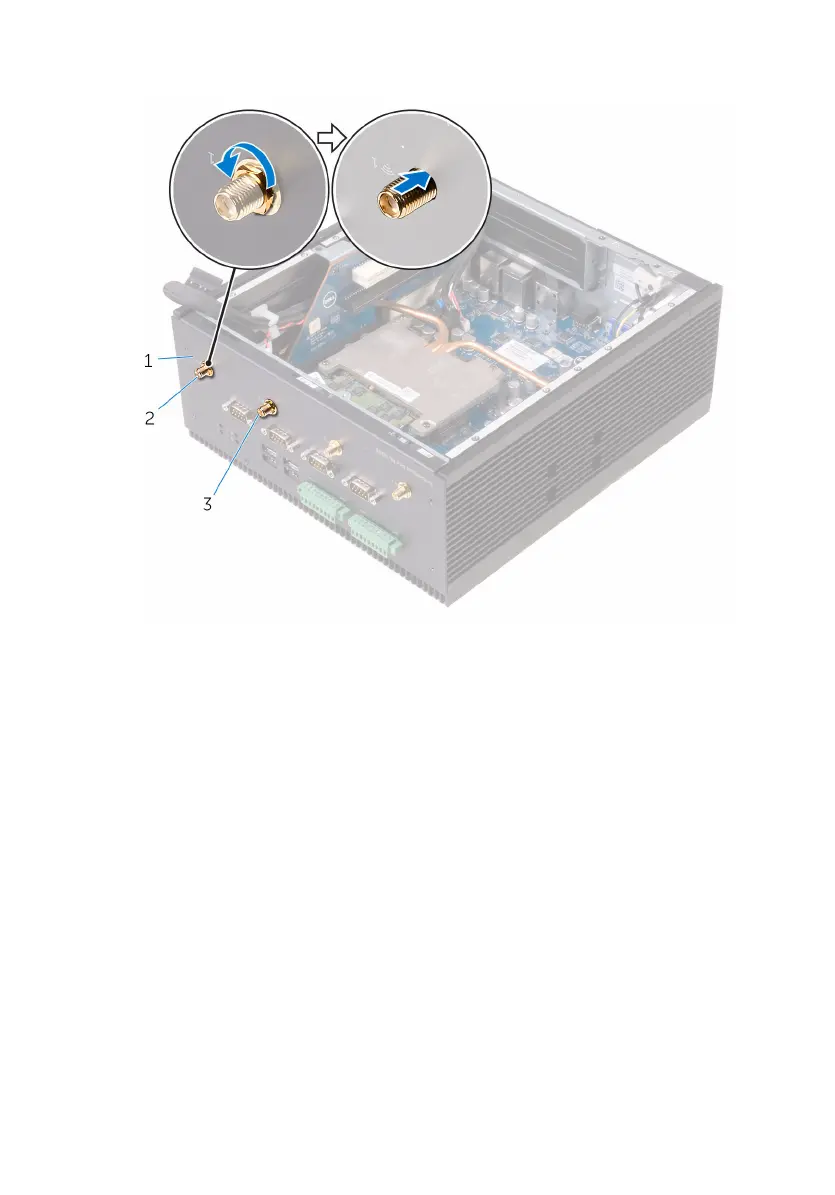

2 Push the WWAN-antenna connectors through the chassis.

1 chassis 2 WWAN antenna connector

two

3 WWAN antenna connector

one

3 Disconnect the antenna cables from the WWAN card.

4 Remove the WWAN-antenna cables from the WWAN-cable routing

guides on the chassis.
