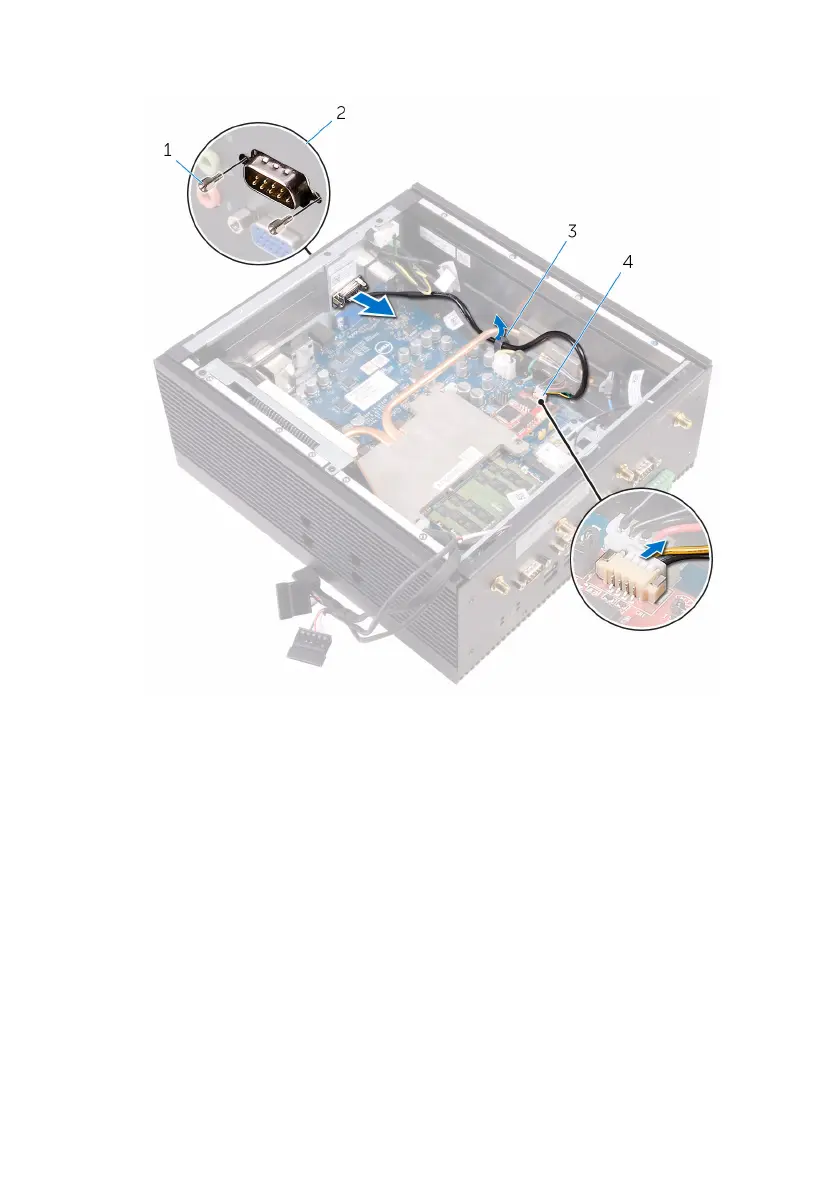

5 Lift the CANbus cable from the Embedded Box PC.

1 #4 40UNCx6.3 hexagonal

screws (2)

2 CANbus port

3 routing guides 4 CANbus-cable connector
