Dell Embedded Box PC 5000

To Next Page

To Previous Page

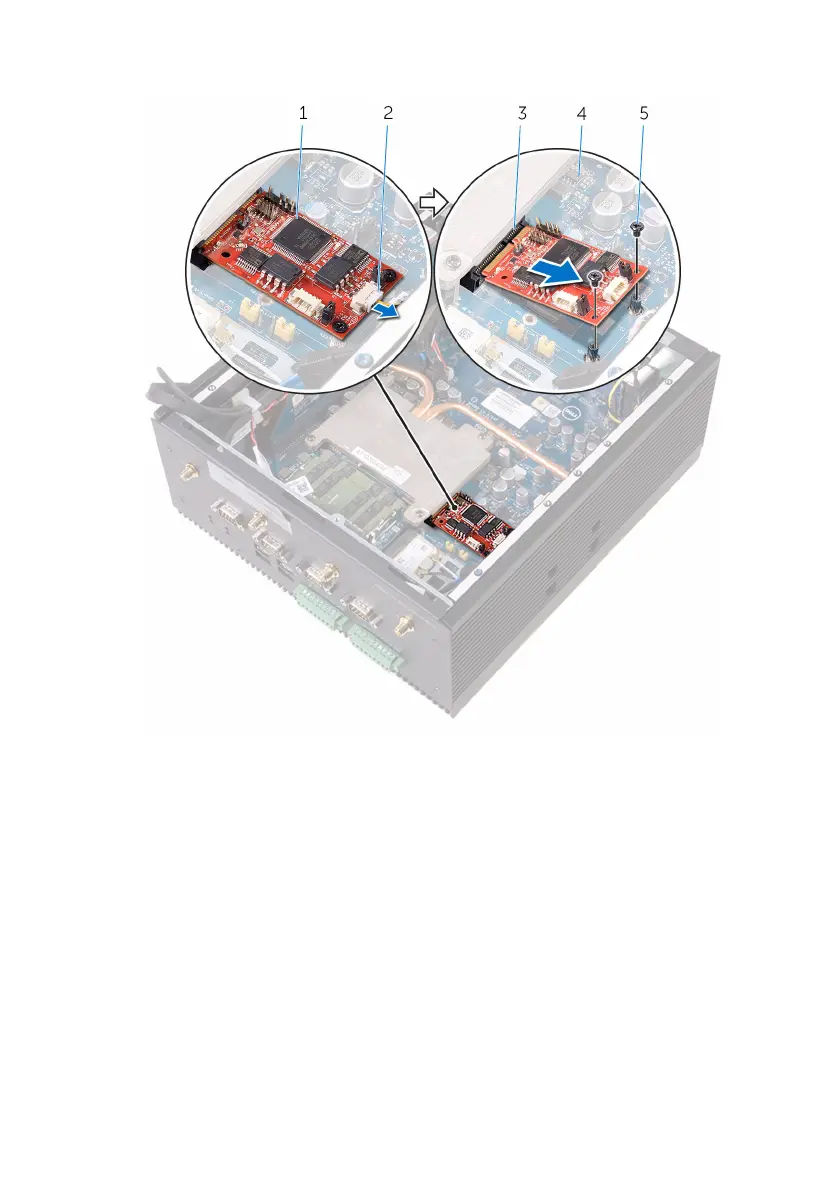

3 Slide and remove the CANbus card from the mPCIE1 slot.

1 CANbus card 2 CANbus cable

3 mPCIE1 slot 4 system board

5 M2x3 screws (2)
