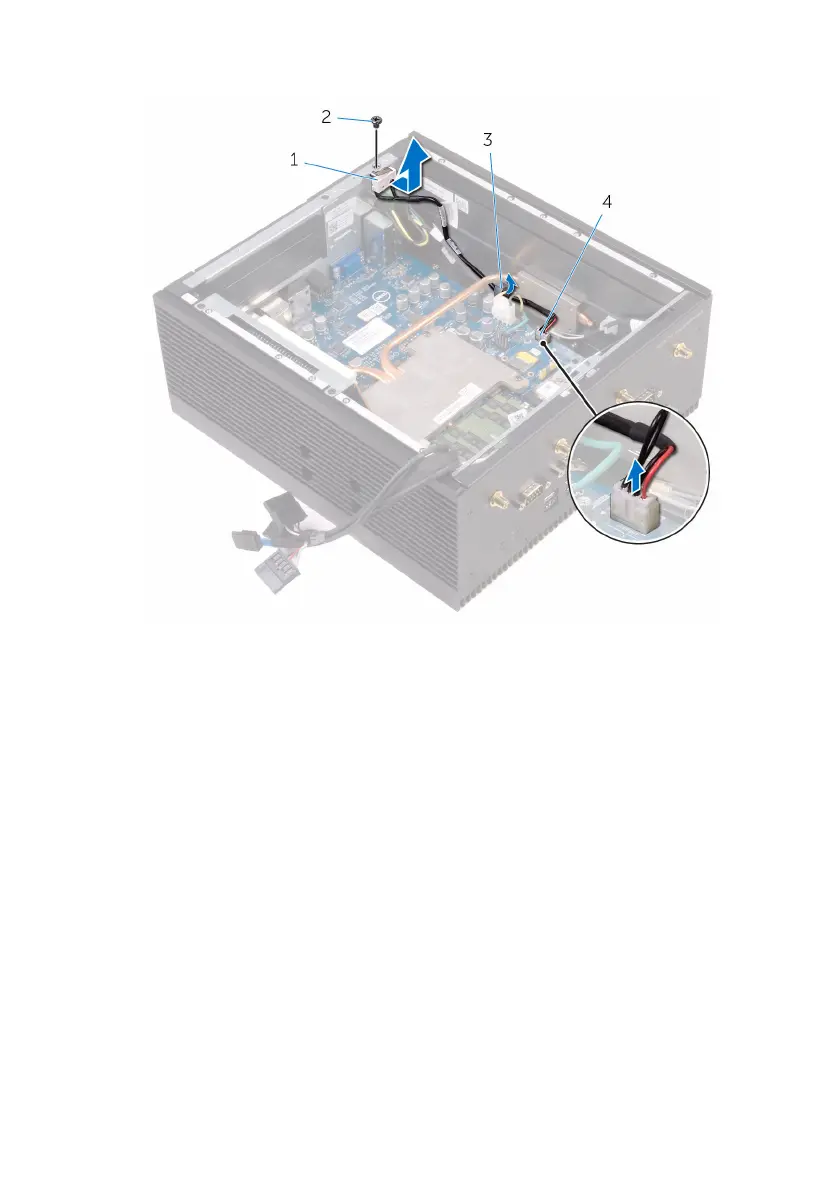

5 Remove the intrusion switch from the chassis.

1 intrusion switch 2 M3x5 countersunk screw

3 routing guide 4 intrusion-switch cable
