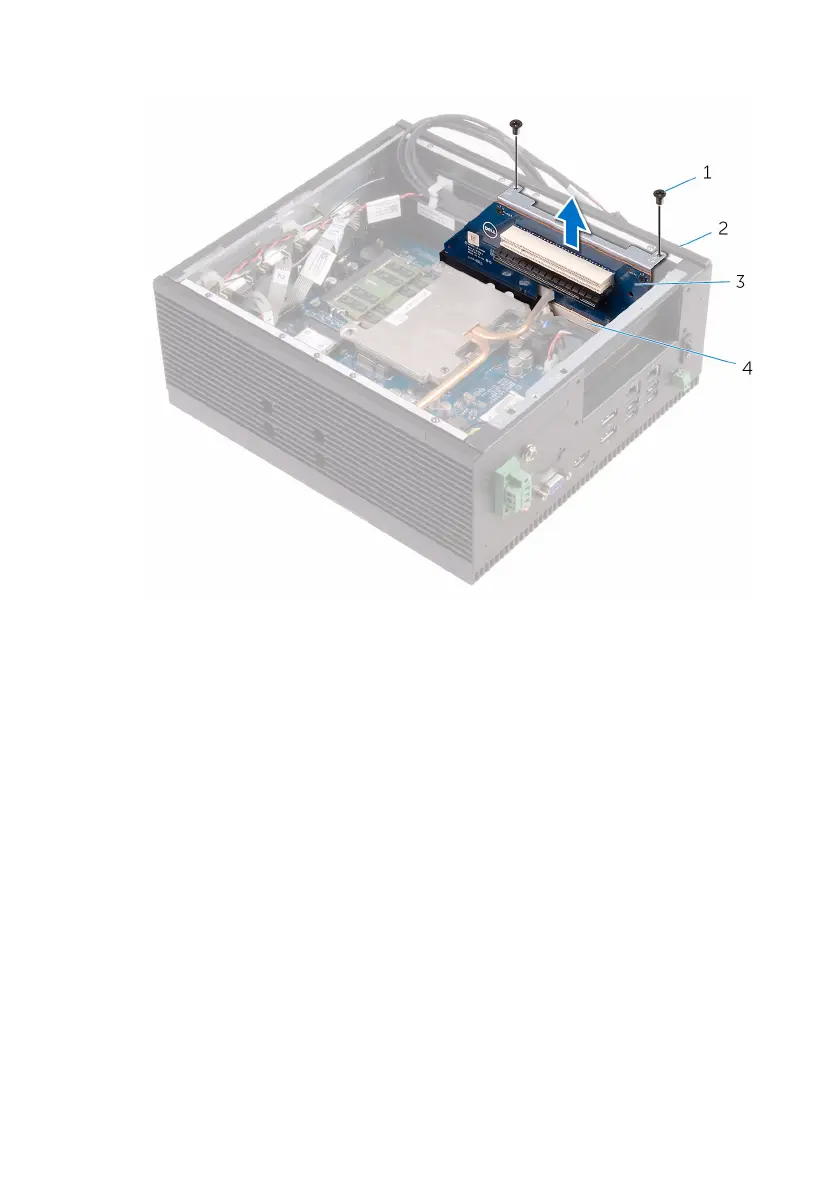

2 Remove the riser-card assembly from the riser-card slots.

1 screw 2 chassis

3 riser card 4 riser-card slots

3 Remove the screws that secure the riser card with the bracket.
