Power interposer board
This is a service technician replaceable part only.
Removing the power interposer board
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the expansion card risers 2.
4. Remove the air shroud.
5. Remove a power supply unit or Remove a power supply unit blank.
6. Disconnect the cables that are connected to power interposer board (PIB) and from the system board.
NOTE: The procedure to remove the PIB is same for Rear Accessed and Front Accessed configurations.
Steps
1. Using a Phillips #2 screwdriver, remove the screws securing the power interposer board to the system.
NOTE: Observe the routing of the cables as you remove it from the system.
2. Lift the PIB away from the system.

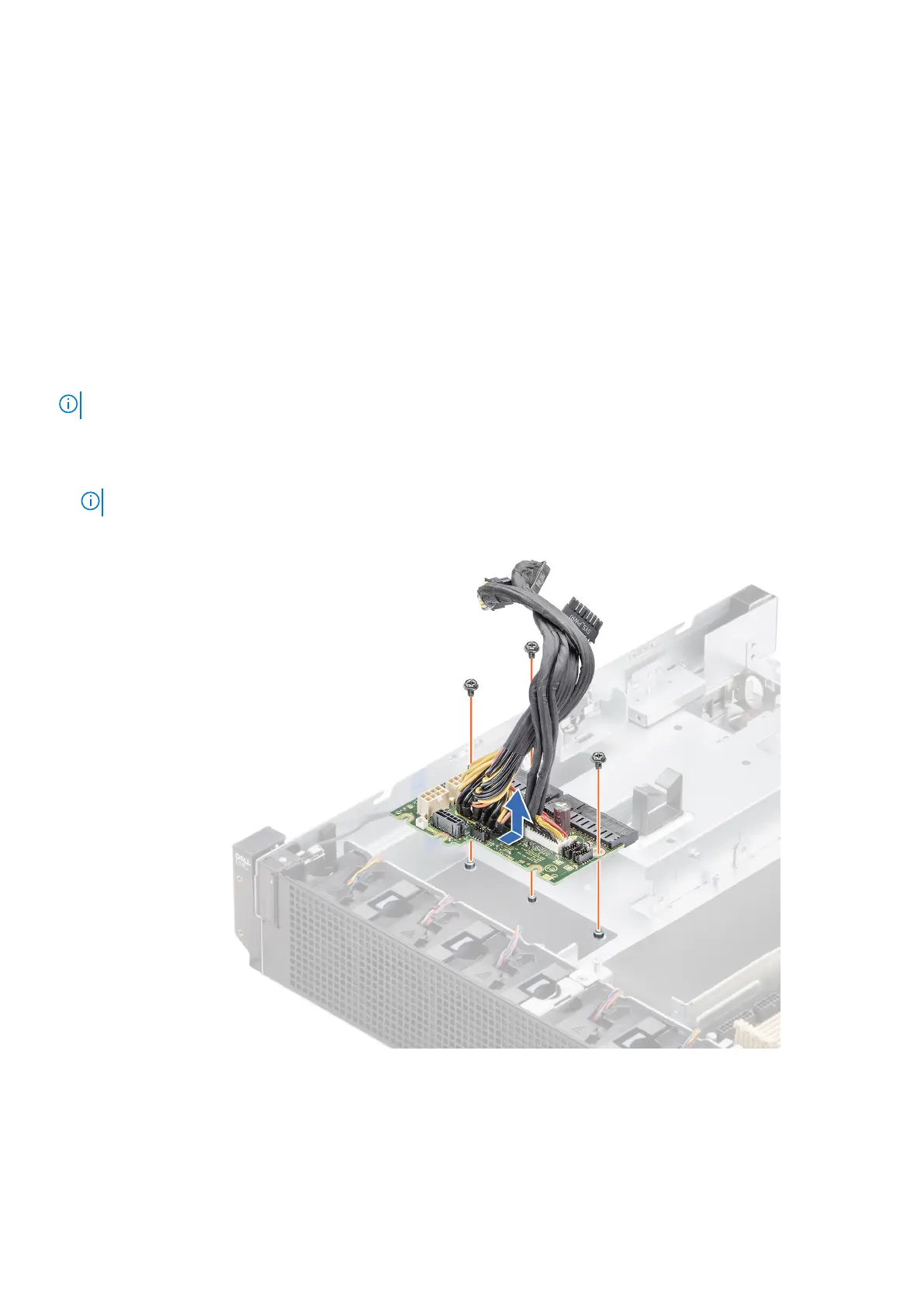

Figure 112. Removing the power interposer board
Next steps
Replace the power interposer board.
