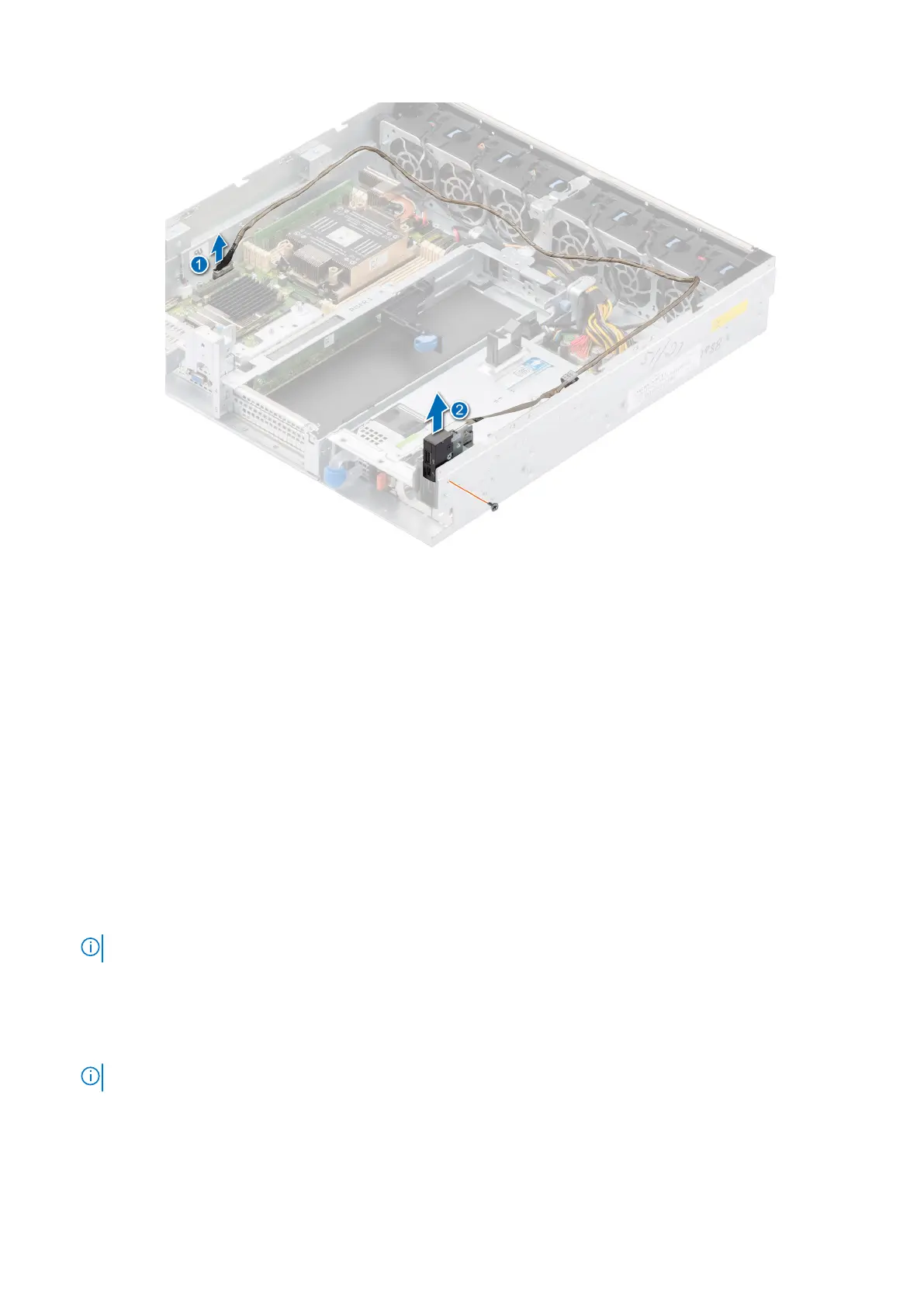

Figure 131. Removing the power button control panel for Front Accessed configuration
Next steps
Installing the power button control panel.
Installing the power button control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the expansion card riser 2.
4. Remove the air shroud.
5. Remove the expansion card riser 1.
Steps
1. Route the control panel cable through the side wall of the system.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
2. Align and insert the control panel in the slot on the system.
3. Connect the control panel cable to the connector on the system board.
4. Using the Torx #8, tighten screws from power button control panel assembly.
5. Using the Phillips #2, tighten screws from rack ear assembly.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 117
