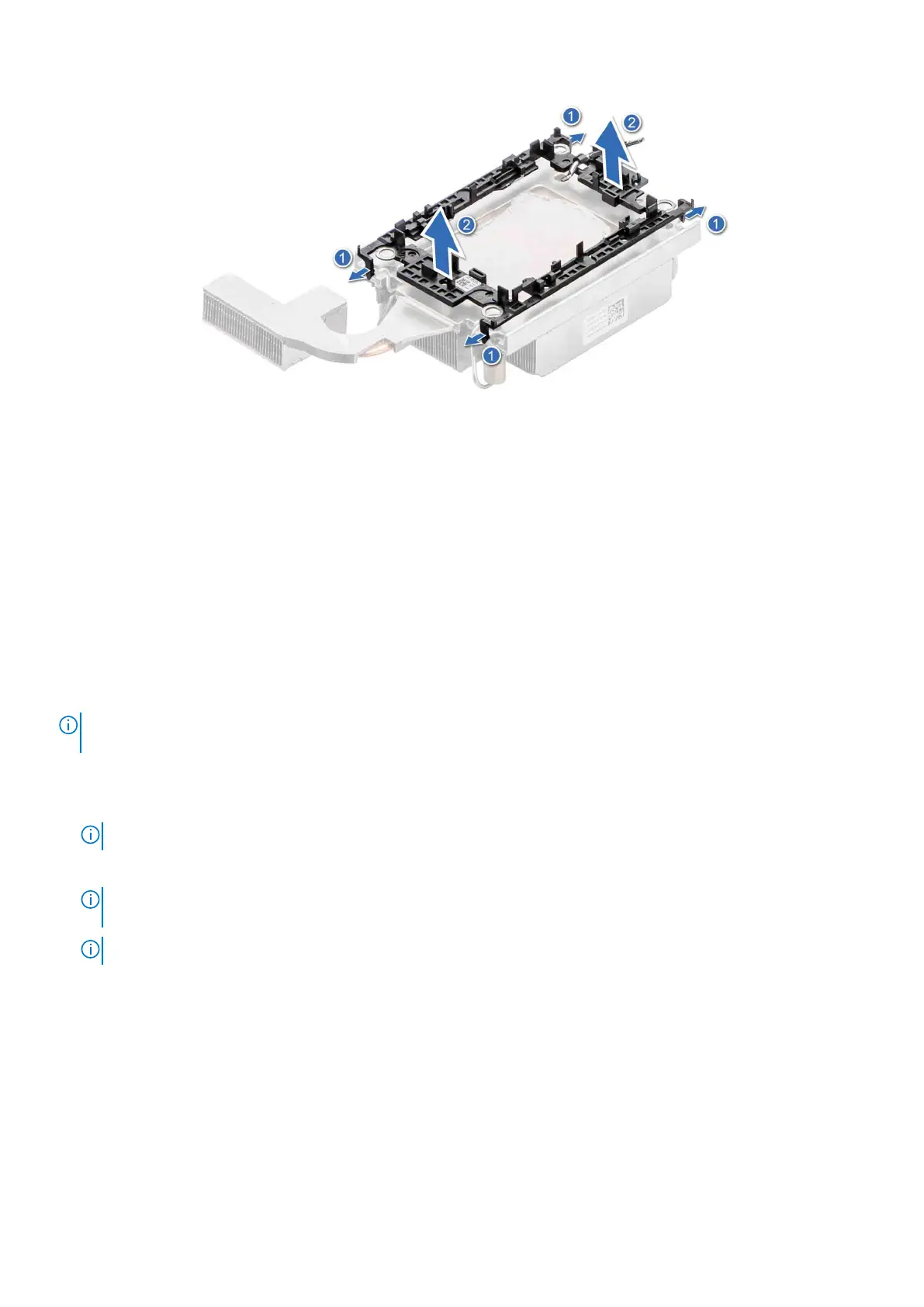

Figure 94. Removing the processor carrier
Next steps
Replace the processor into a processor and heat sink module.
Installing the processor into a processor and heat sink module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser 2.
4. Remove the air shroud.
5. Remove the processor and heat sink module.
NOTE:
The procedure to install the processor into the processor and heat sink module is the same for Rear Accessed and
Front Accessed configurations.
Steps
1. Place the processor in the processor tray.
NOTE: Ensure that the pin 1 indicator on the processor tray is aligned with the pin 1 indicator on the processor.
2. Place the processor carrier on top of the processor that is in the processor tray aligning pin 1 indicator on the processor.
NOTE:
Ensure that the pin 1 indicator on the carrier is aligned with the pin 1 indicator on the processor before placing
the carrier on the processor.
NOTE: Ensure that the processor and the carrier are placed in the tray before you install the heat sink.
Installing and removing system components 87
