Table 6. Power button control panel (continued)
Item Indicator or button Icon Description
NOTE: The USB 2.0 port is not available on Front Accessed
configuration.
3
iDRAC Direct LED
indicator
N/A The iDRAC Direct LED indicator lights up to indicate that the iDRAC Direct
port is actively connected to a device.
4
iDRAC Direct port (Micro-
AB USB)
The iDRAC Direct port (Micro-AB USB) enables you to access the iDRAC
direct features. For more information, see the https://www.dell.com/
idracmanuals.
NOTE: You can configure iDRAC Direct by using a USB to micro USB
(type AB) cable, which you can connect to your laptop or tablet. Cable
length should not exceed 3 feet (0.91 meters). Performance could be
affected by cable quality.
NOTE: For more information, see the Dell EMC PowerEdge XR12 Technical Specifications on the product documentation
page.
Inside the system

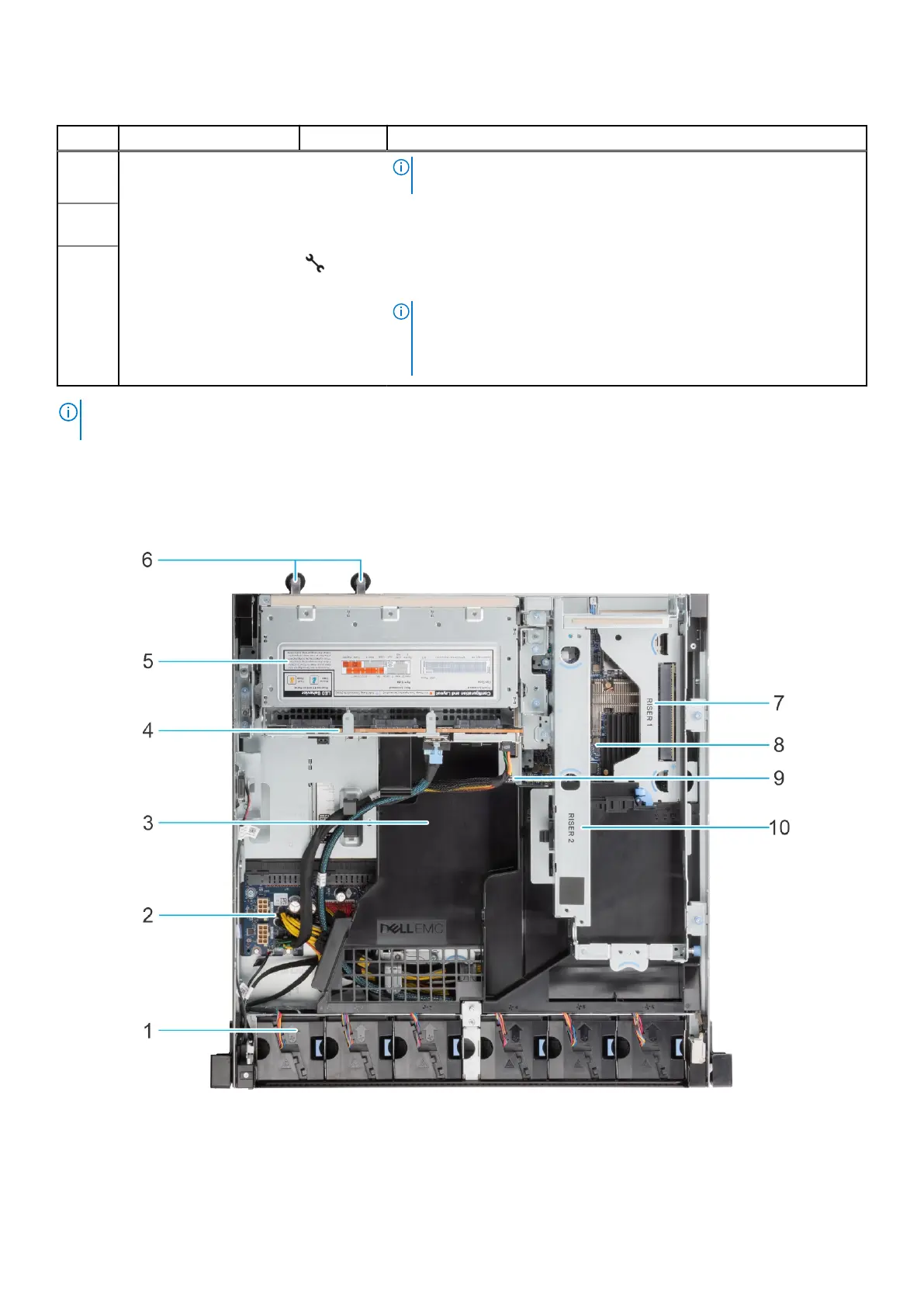

Figure 7. Inside the system - Rear Accessed configuration
1.
Cooling fan (6) 2. Power Interposer Board (PIB)
3. Air shroud 4. Backplane
14 PowerEdge XR12 system overview
