Dell PowerEdge XR12

Next steps
Replace the bezel.
Installing the front bezel
Prerequisites
Follow the safety guidelines listed in the Safety instructions.
Steps
1. Align the screws on the sides of the bezel with the holes on the system rack ears.
2. Tighten the screws that secure the bezel on both sides of the system rack ears.

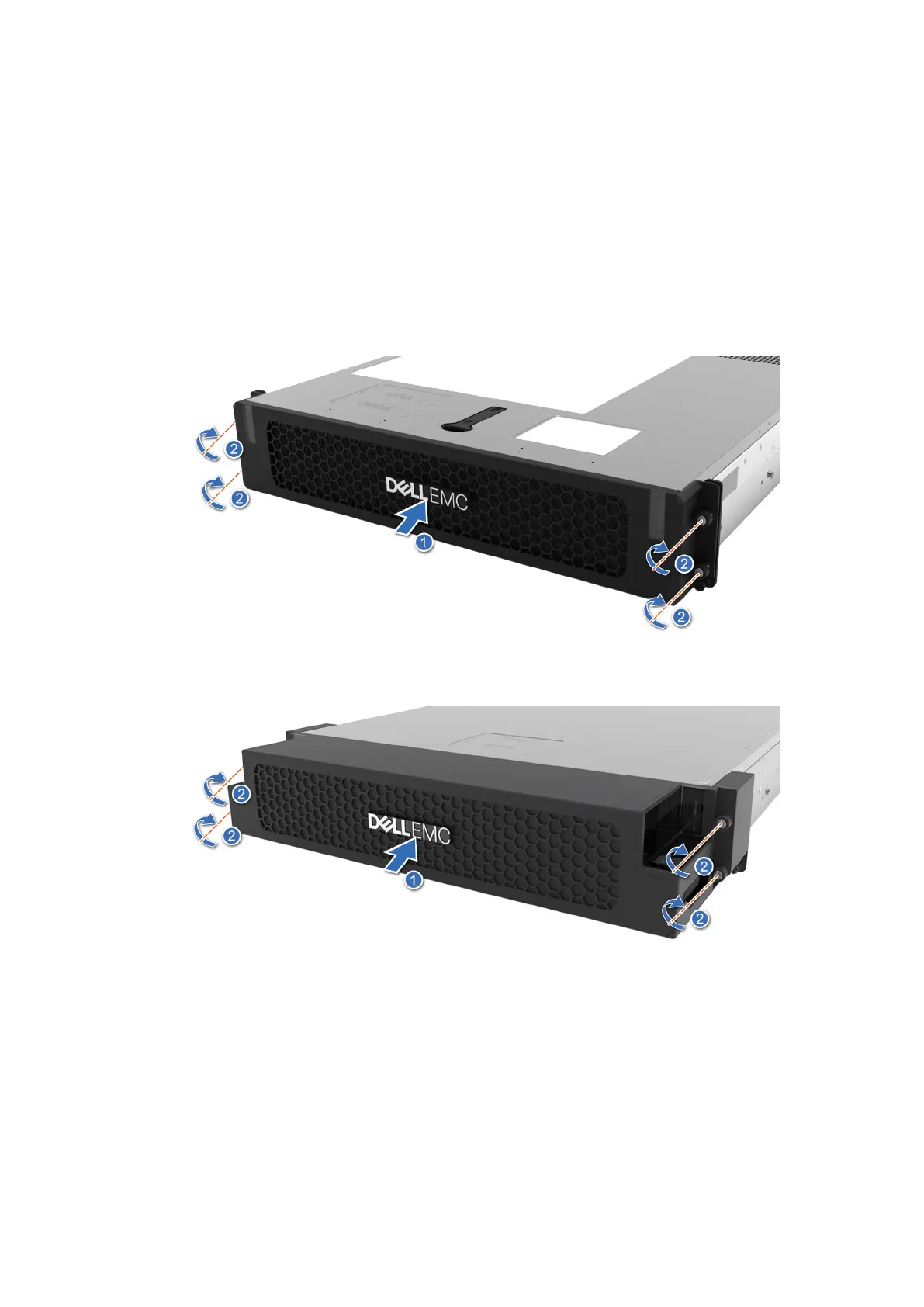

Figure 21. Installing the front bezel for Rear Accessed configuration
Figure 22. Installing the front bezel for Front Accessed configuration
28
Installing and removing system components
