Removing the expansion card riser 1
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the expansion card riser 2.
4. Remove the air shroud.
NOTE: The procedure to remove the expansion card riser 1 is the same for Rear Accessed and Front Accessed
configurations.
Steps
1. Using the Phillips #2 screwdriver, loosen the blue thumbscrew.
2. Hold the blue touch points and lift the expansion card riser from the riser connector on the system board.

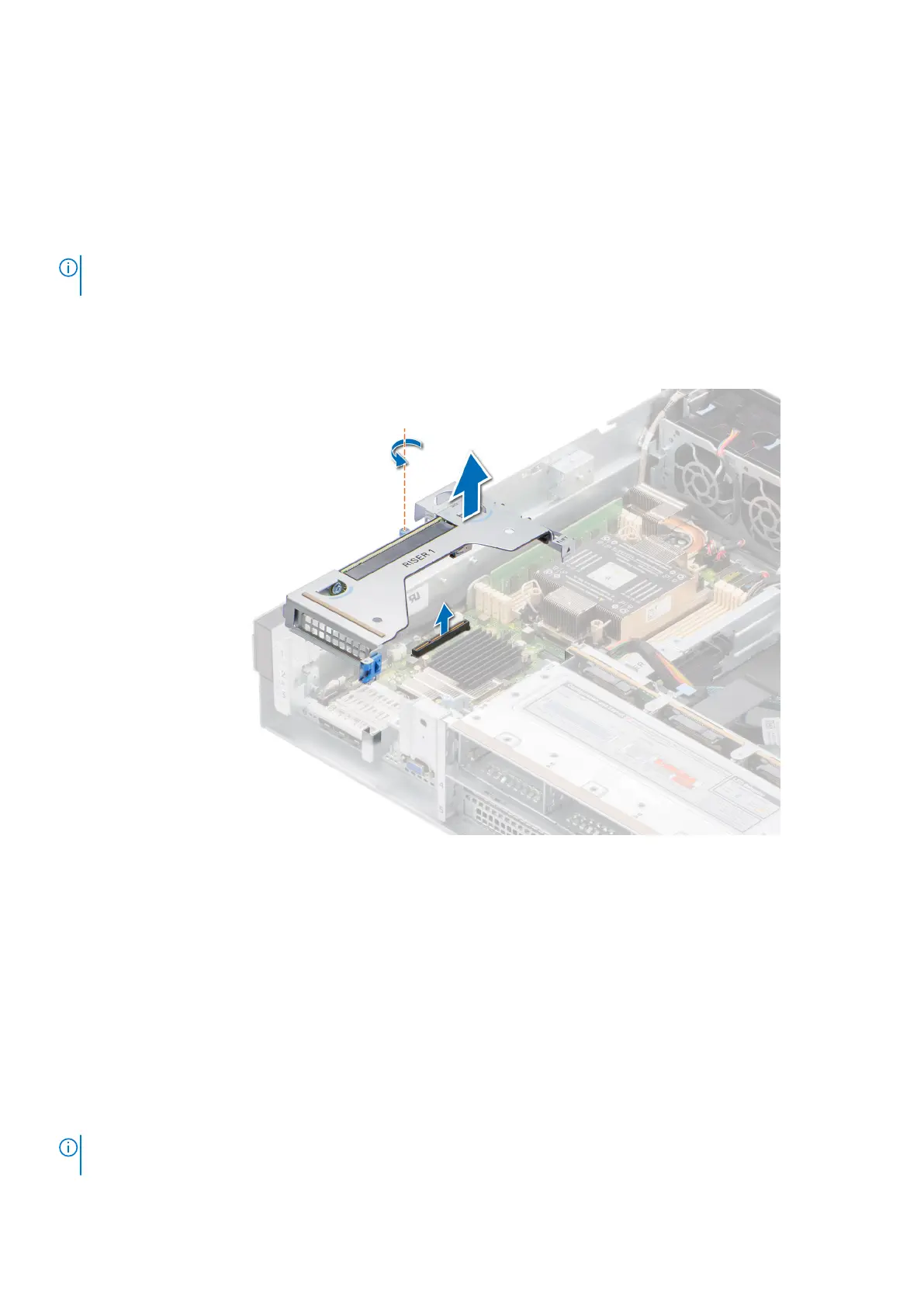

Figure 37. Removing the expansion card riser 1
Next steps
Replace the expansion card riser 1.
Installing the expansion card riser 1
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the expansion card riser 2.
4. Remove the air shroud.
NOTE:
The procedure to remove the expansion card riser 1 is the same for Rear Accessed and Front Accessed
configurations.
Installing and removing system components 41
