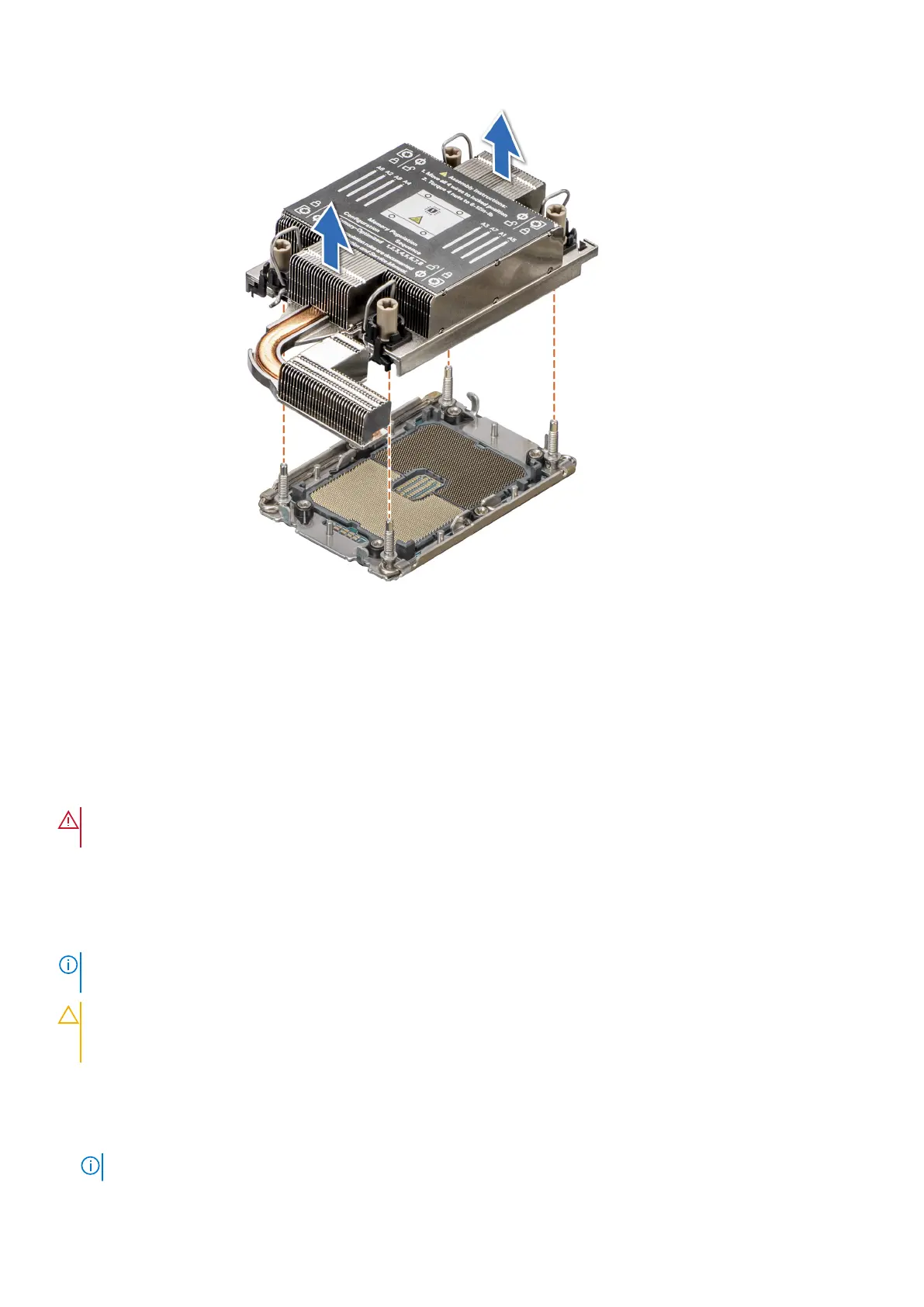

Figure 91. Removing a processor and heat sink module
Next steps
If you are removing a faulty heat sink, replace the heat sink, if not, remove the processor.
Removing the processor from the processor and heat sink module
Prerequisites
WARNING:
Remove the processor from the processor and heat sink module (PHM) only if you are replacing the
processor or heat sink.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the expansion card riser 2.
4. Remove the air shroud.
5. Remove the processor and heat sink module.
NOTE:
The procedure to remove the processor from the processor and heat sink module is the same for Rear Accessed
and Front Accessed configurations.
CAUTION: An expected CMOS battery loss or CMOS checksum error message may be displayed during the first
instance of powering on the system after replacing the processor or system board. To resolve this issue, go to
setup option to configure the system settings.
Steps
1. Place the heat sink with the processor side facing up.
2. Using your thumb lift up the Thermal Interface Material (TIM) break lever to release the processor from the TIM and carrier.
NOTE: Ensure to hold the carrier to the heat sink as you lift the TIM break lever.
Installing and removing system components 85
