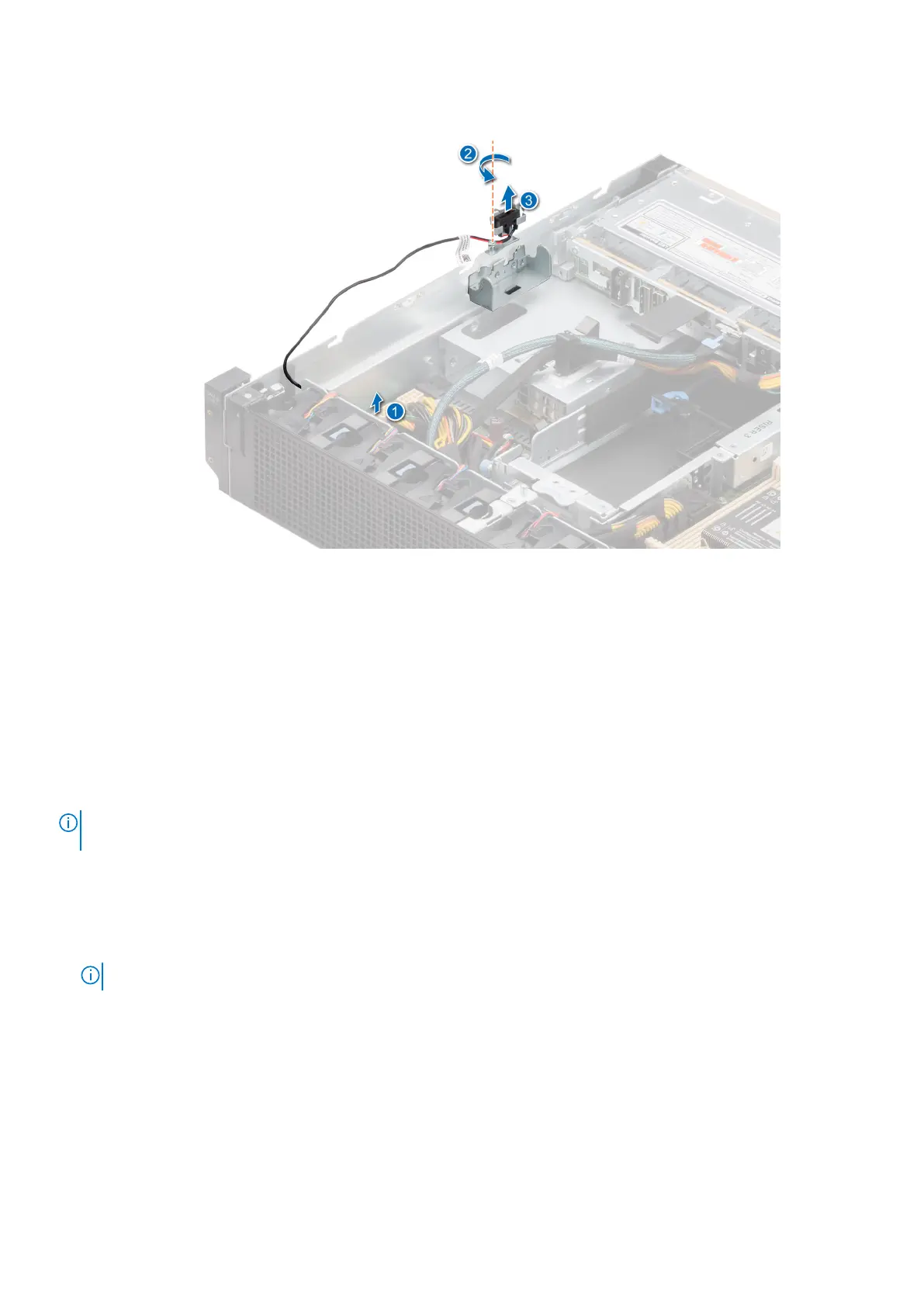

Figure 85. Removing the intrusion switch module
Next steps
Replace the intrusion switch module.
Installing the intrusion switch
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
NOTE:
The procedure to install the intrusion switch module is the same for Rear Accessed and Front Accessed
configurations.
Steps
1. Align and insert the intrusion switch module until it is firmly seated in the slot on the system.
2. Using the Phillips #1 screwdriver, tighten the screw securing the intrusion switch module.
3. Connect the intrusion switch cable to the connector on the power interposer board (PIB).
NOTE: Route the cable properly when you replace them to prevent the cable from being pinched or crimped.
Installing and removing system components 77
