Dell PowerEdge XR12

Cable routing

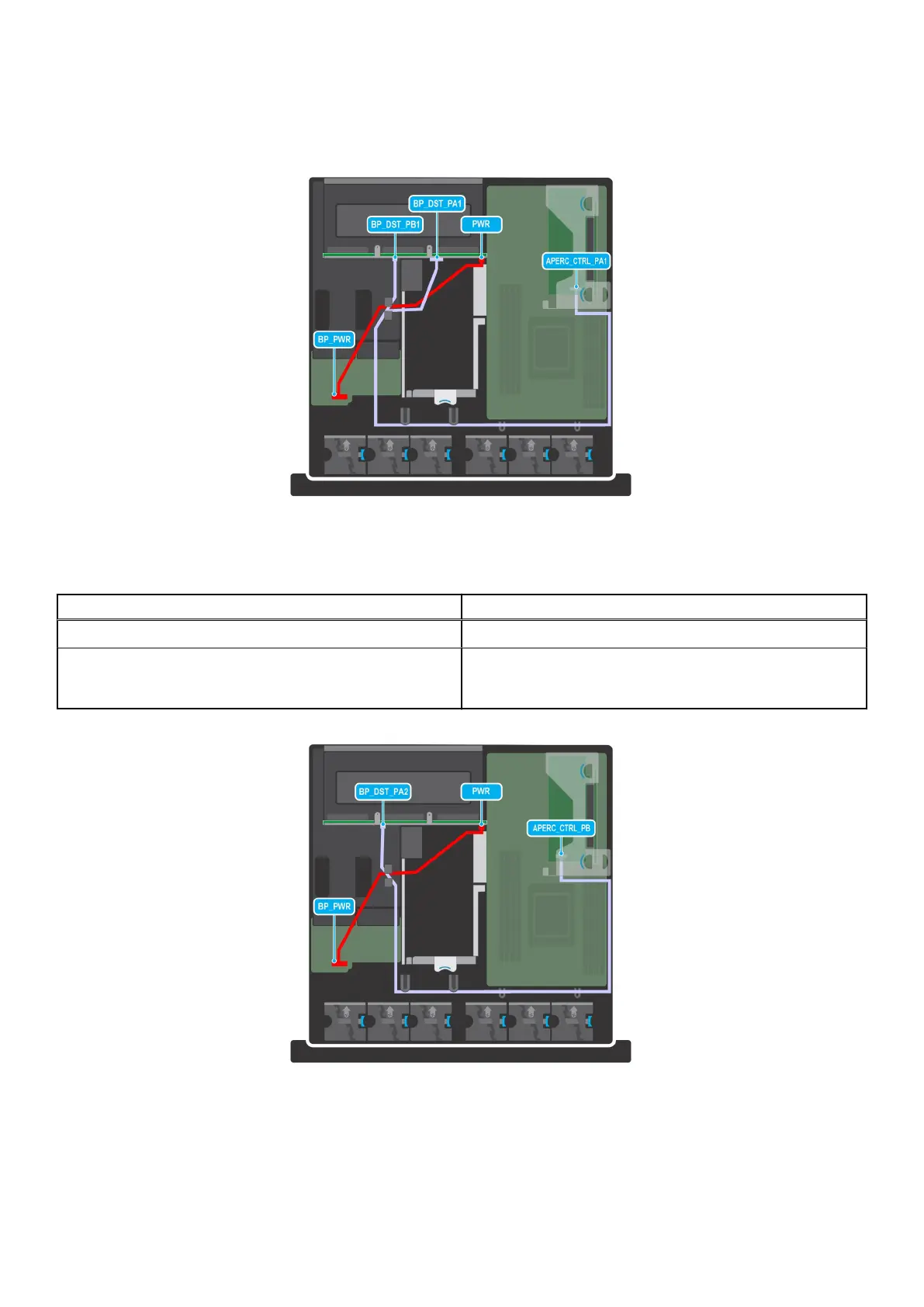

Figure 72. PERC PA NVMe cable with 6 x 2.5-inch backplane
Table 18. Connector descriptions for PERC PA NVMe cable with 6 x 2.5-inch backplane
From To
PWR (PIB power connector) BP_PWR (backplane power connector)
BP_DST_PA1 (backplane NVMe connector, cable marking BP
PA1) and BP_DST_PB1 (backplane NVMe connector, cable
marking BP PB1)
APERC_CTRL_PA1 (signal connector on the system board,
cable marking CTRL_PA1)
Figure 73. PERC PB NVMe cable with 6 x 2.5-inch backplane
68
Installing and removing system components
