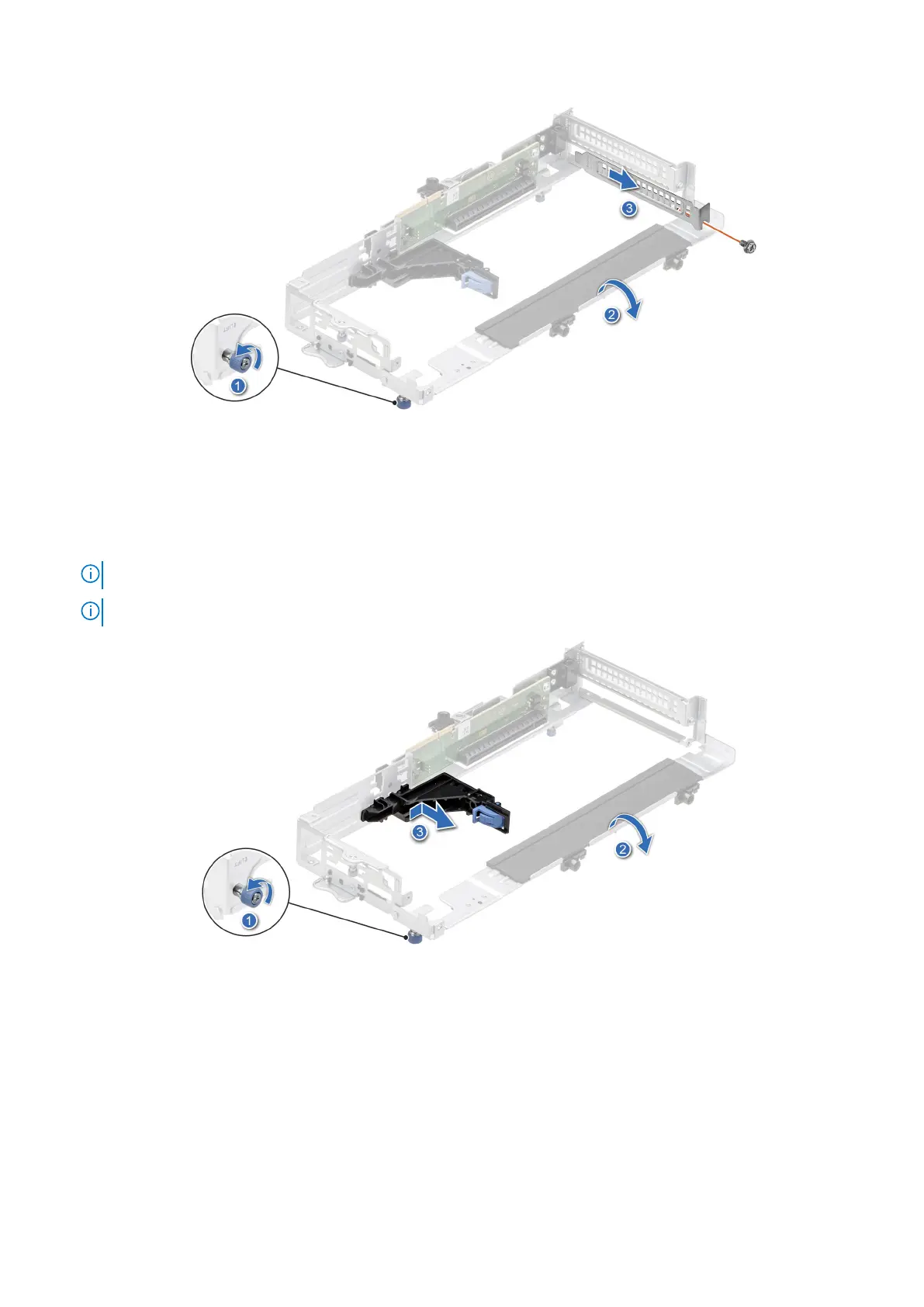

Figure 59. Removing a filler bracket from riser 3
4. Remove the plastic card guide from the riser if the expansion card to be installed is longer than half-length.
5. Hold the card by the edges, and align the card edge connector with the expansion card connector on the riser.
6. Insert the card edge connector firmly into the expansion card connector until the card is fully seated.
7. Using the Phillips #1 screwdriver, tighten the screw.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
NOTE: For a double-width, full-length GPU card, remove the plastic card guide from the riser.
Figure 60. Removing the plastic card guide from the riser
Installing and removing system components
57
