Hard drive cable connector
Removing the hard drive cable connector
1 Follow the procedures in Before working inside your computer.
2 Remove the:
a battery cover
b battery
c base cover
d hard drive
3 To remove the hard drive cable connector:

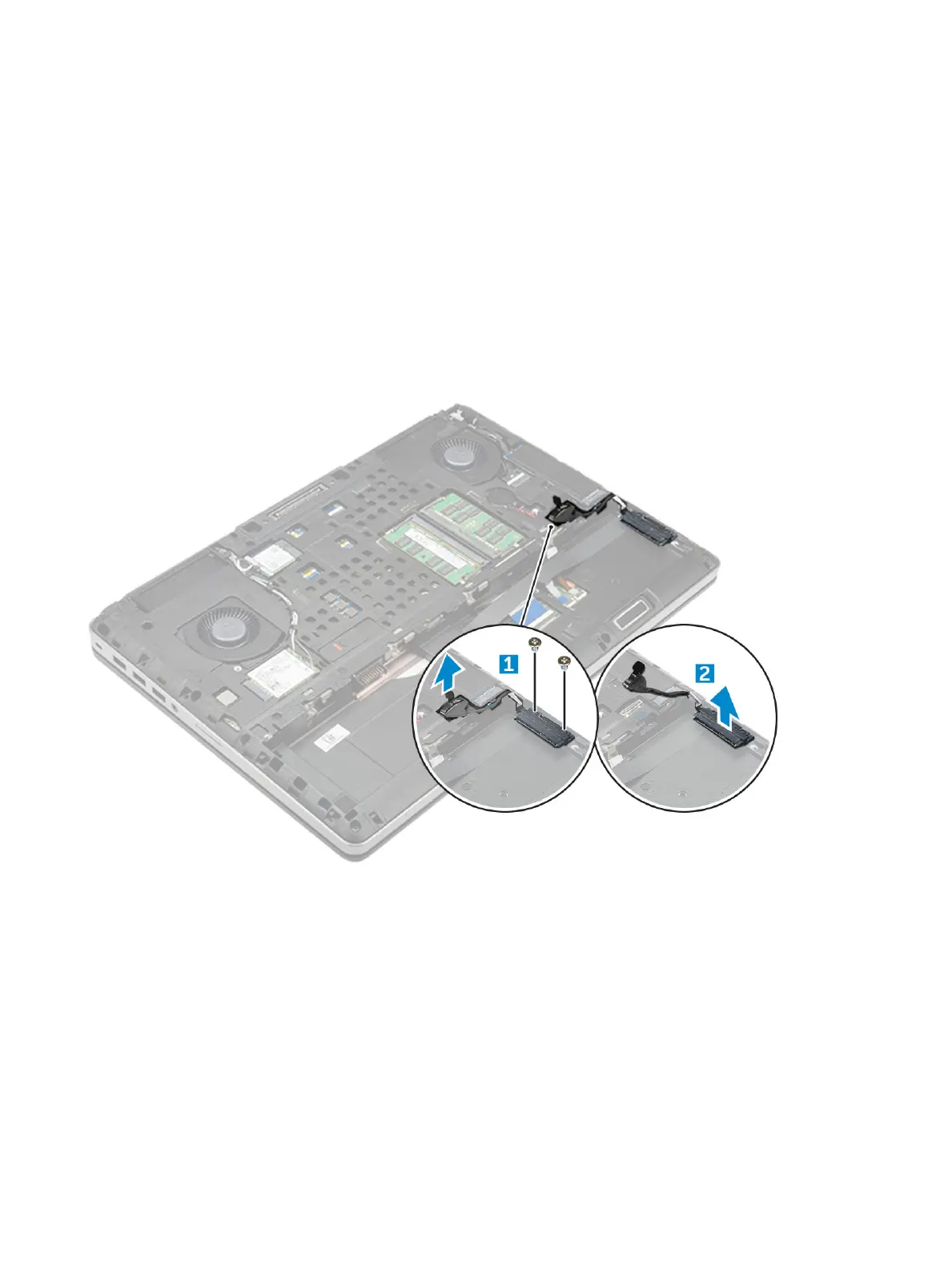

a Remove the M2.5x5.0 screws that secure the hard drive connector to the system board [1].
b Remove the hard drive cable connector from the computer [2].
Installing the hard drive cable connector
1 Connect the hard drive cable to the system board.
2 Insert and route the cable through the routing channel.
3 Replace the M2.5x5.0 screws to secure the hard drive cable connector to the computer.
4 Install the:
a hard drive
b base cover
c battery
d battery cover
5 Follow the procedure in After working inside your computer.
Disassembly and reassembly
13
