Removing the display panel
NOTE: For touch systems perform following step.
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a battery cover
b battery
c base cover
d hard drive
e keyboard
f palmrest
g display assembly
h display bezel
3 To remove the display panel:

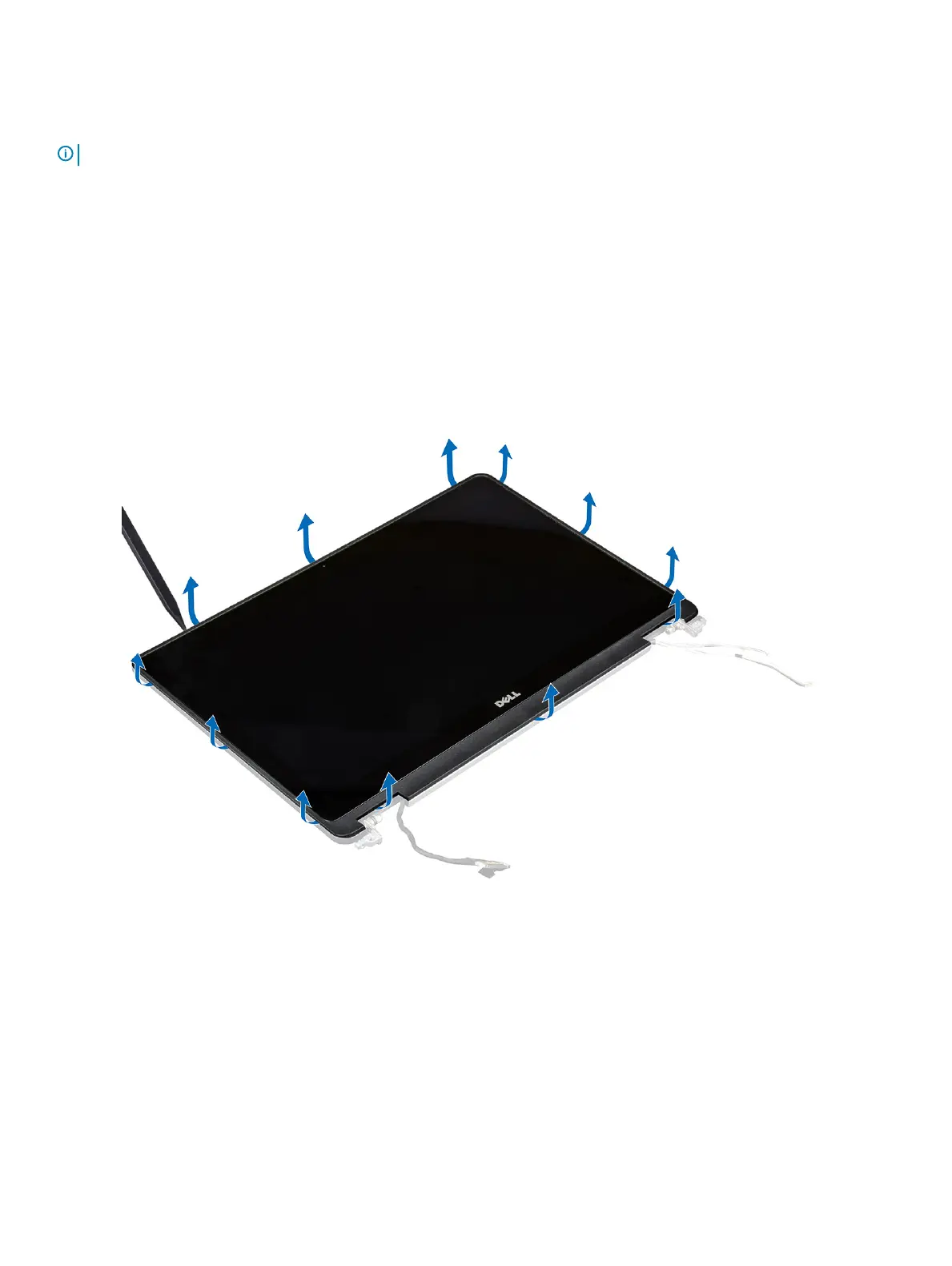

a Using a plastic scribe lift the edges of the display panel to disengage it from the display assembly.
b Lift the display panel and turn the display panel over to access the eDP and display cables.
46
Disassembly and reassembly
