f palmrest

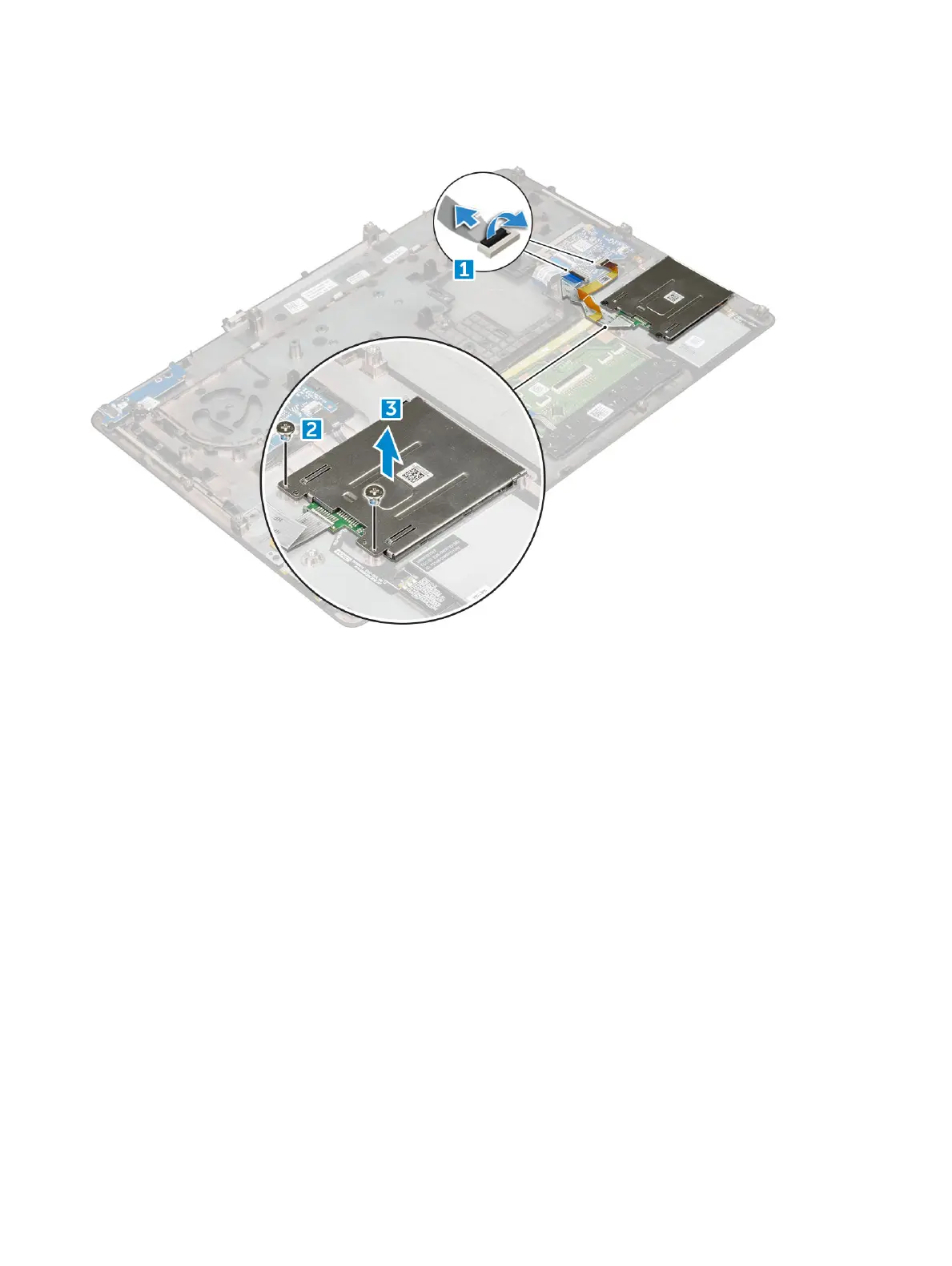

3 To remove expresscard:
a Disconnect the expresscard cable from the computer [1].
b Remove the M2.5x5.0 screws that secure expresscard to the computer [2].
c Remove the expresscard board from the computer [3].
Installing the expresscard
1 Place the expresscard on the computer.
2 Replace the M2.5x5.0 screws that secure expresscard on the computer.
3 Connect the expresscard cable.
4 Install the:
a palmrest
b keyboard
c hard drive
d base cover
e battery
f battery cover
5 Follow the procedure in After working inside your computer.
USB board
Disassembly and reassembly
41
