Removing the USB board
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a battery cover
b battery
c base cover
d hard drive
e keyboard
f palmrest
3 To remove USB board:

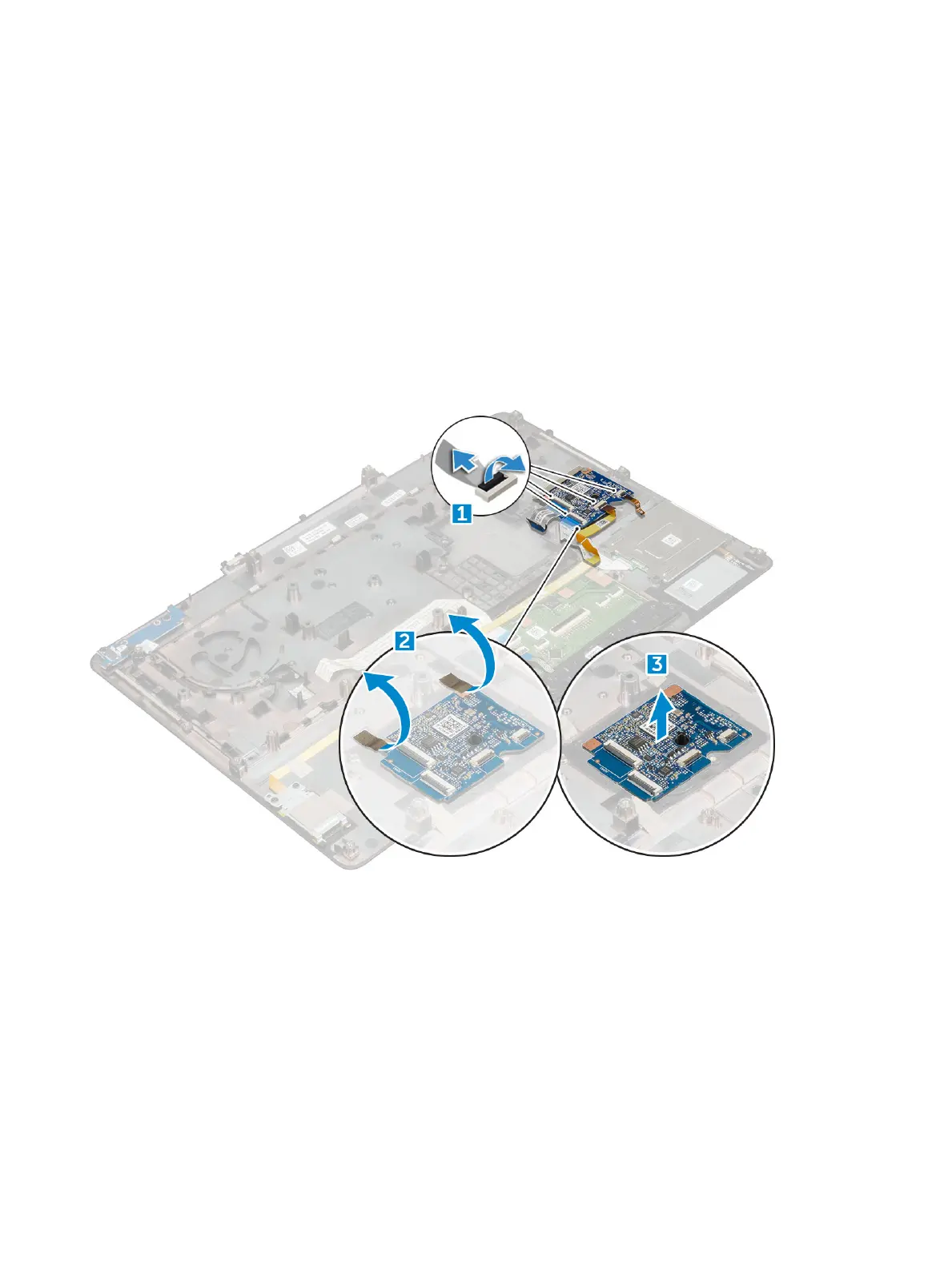

a Disconnect the USB board cable from the computer [1].
b Remove the adhesive tape that secures USB board to the computer [2].
c Lift the USB board from the computer [3].
Installing the USB board
1 Place the USB board on the computer.
2 Ax the adhesive tape to secure the USB board on the computer
3 Connect the USB board cable.
4 Install the:
a palmrest
b keyboard
c hard drive
d base cover
