c keyboard
d hard drive
e base cover
f battery
g battery cover
5 Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a battery cover
b battery
c base cover
d hard drive
e keyboard
f WLAN card
g WWAN card
h palmrest

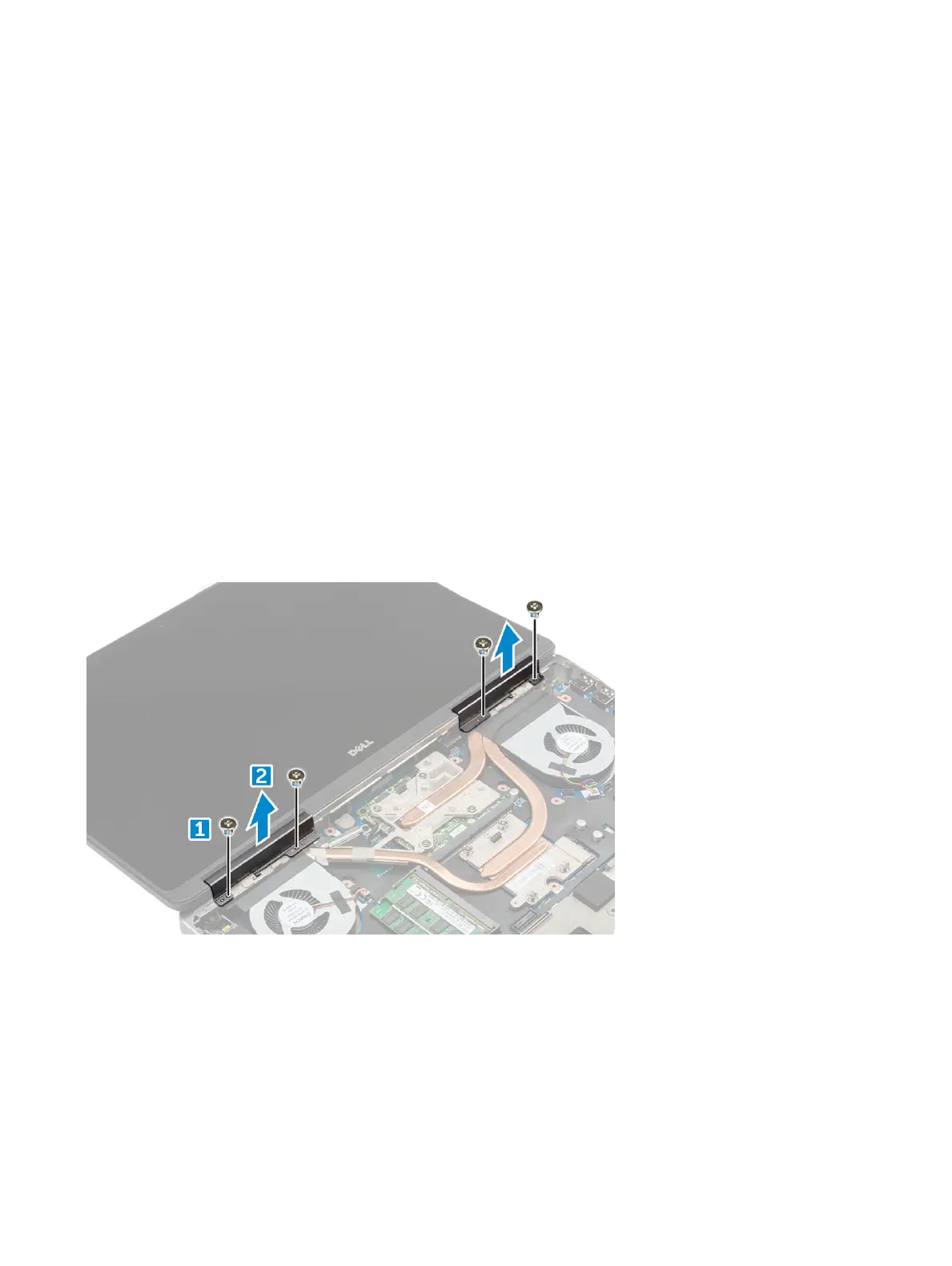

3 To remove hinge cap:
a Remove the M2.5x4.0 screws that secure the hinge caps [1].
b Remove the hinge caps from the computer [2].
4 To disconnect antenna cables:
a Flip the computer and remove the M2.0X3 screws from the computer [1].
b Pull the antenna cables through the routing hole [2].
Disassembly and reassembly
37
