4 To remove system board:

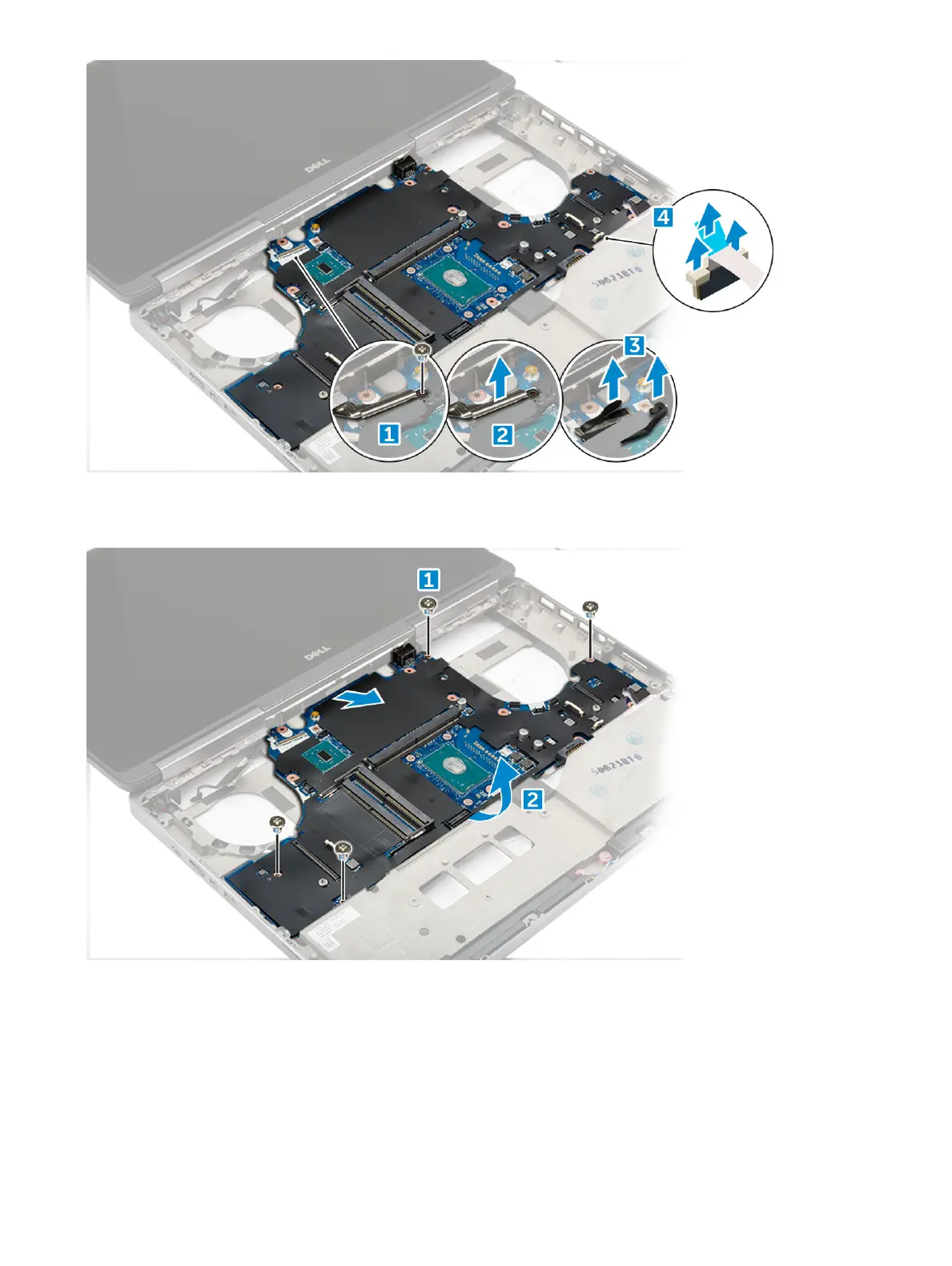

a Remove the M2.5X5.0 screws that secure the system board [1].
b Slide and lift system board from the computer [2].
Installing the system board
1 Align the system board into its original position on the computer.
2 Replace the M2.5x5.0 screws to secure the system board to the computer.
3 Connect the following cables:
a power connector
Disassembly and reassembly
