4 Follow the procedure in After working inside your computer.
eDP cable
Removing the eDP cable
NOTE: For non touch systems perform following steps.
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a battery cover
b battery
c base cover
d hard drive
e keyboard
f palmrest
g display assembly
h display bezel
i display panel

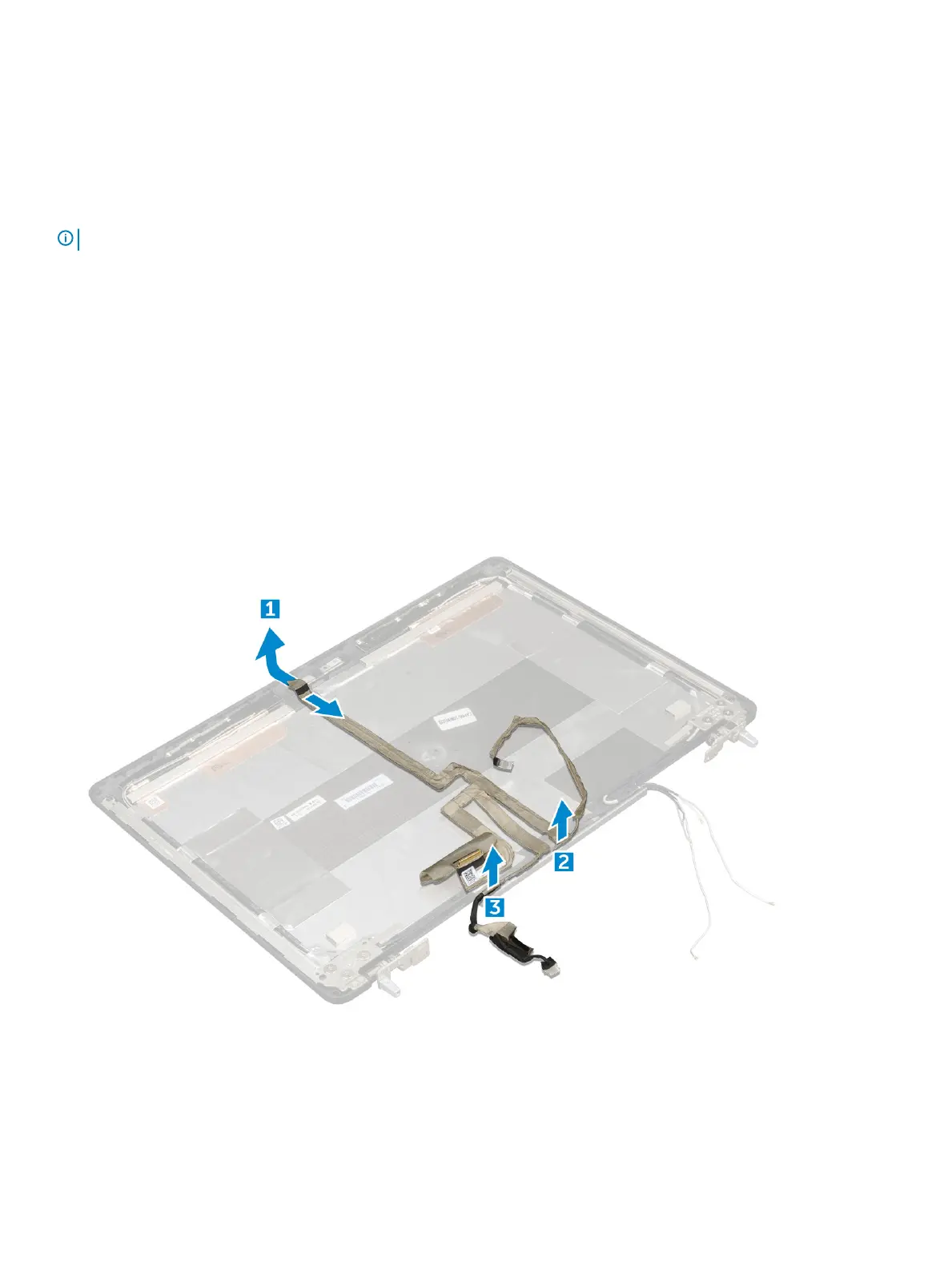

3 To remove eDP cable:
a Peel the eDP cable [1].
b Unroute the eDP cable from the display cover [2, 3].
