e hard drive
f keyboard
g palmrest

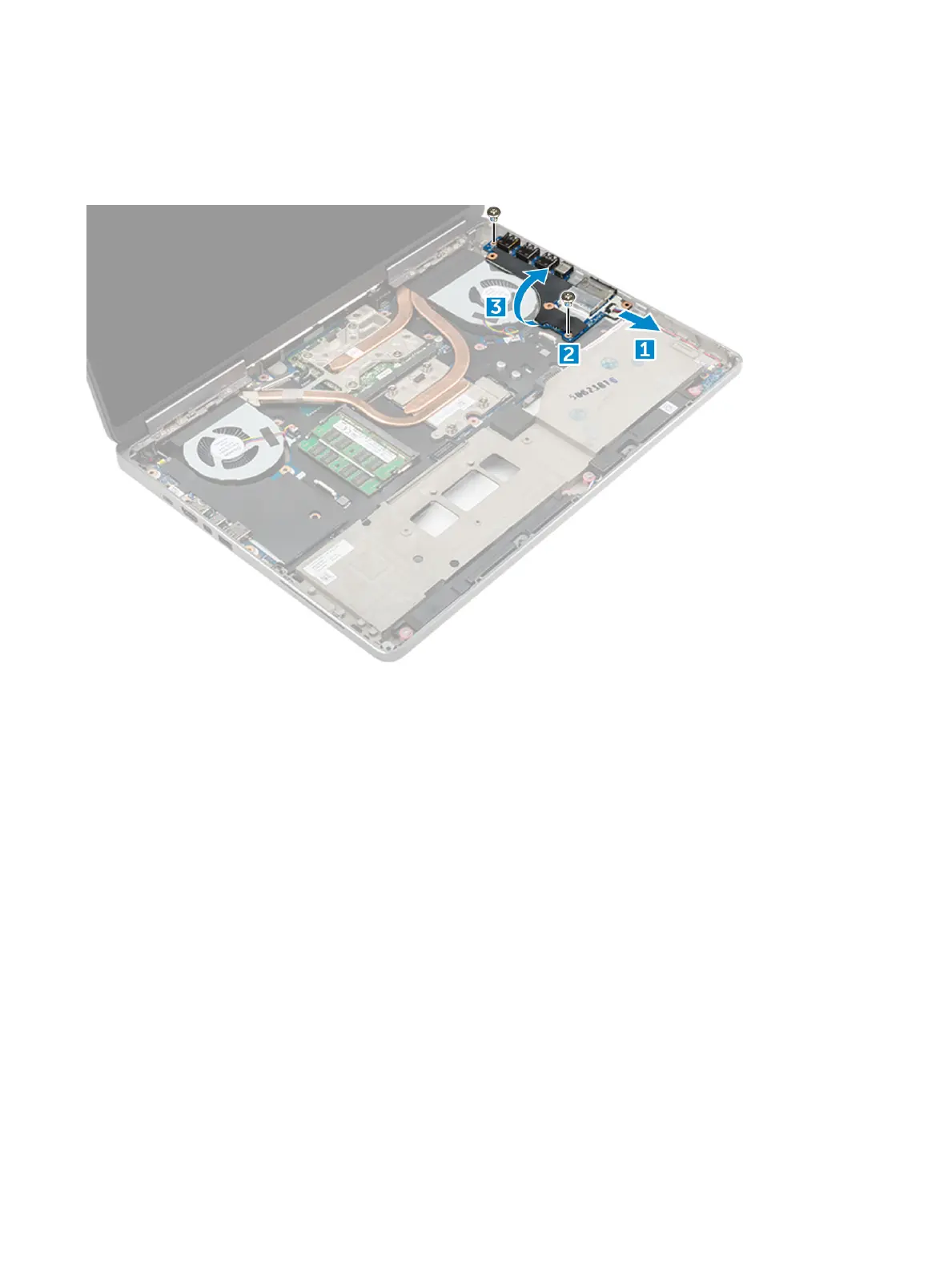

3 To remove I/O board:
a Disconnect the right speaker cable from the I/O board [1].
b Remove the M2.5x5.0 screws that secure the I/O board to the computer [2].
c Lift the I/O board upwards to and remove it from the computer [3].
Installing the right IO board
1 Connect the I/O board connector cable and slide the I/O board into its slot on the computer.
2 Replace the M2.5x5.0 screws to secure the I/O board to the computer.
3 Connect the speaker cable to the I/O board.
4 Install the:
a palmrest
b keyboard
c hard drive
d base cover
e battery
f battery cover
g SD card
5 Follow the procedure in After working inside your computer.
Disassembly and reassembly
29
