Dell Precision 7520 - Installing the Display Hinge

a battery cover
b battery
c base cover
d hard drive
e keyboard
f palmrest
g display assembly
h display bezel
i display panel

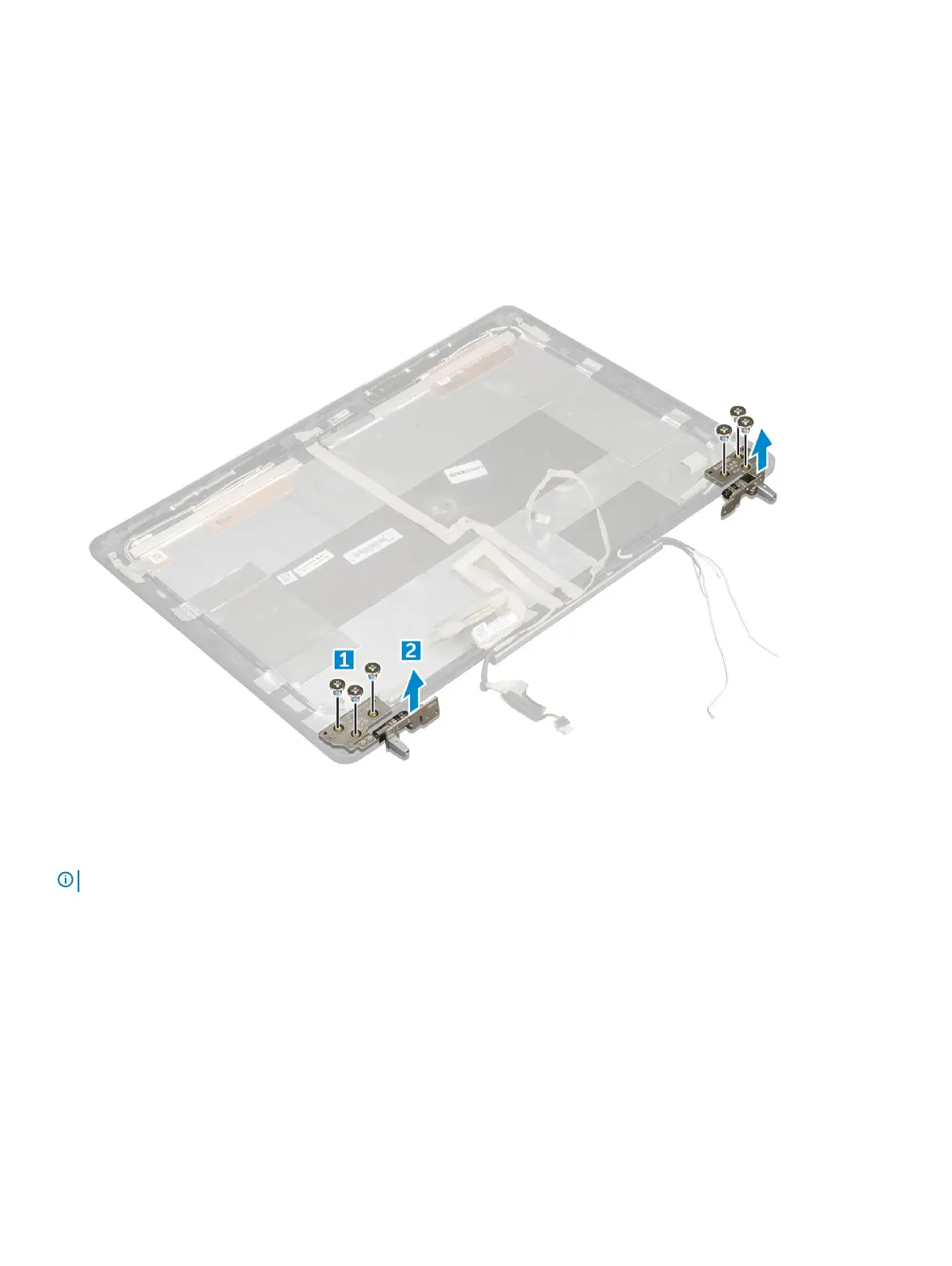

3 To remove display hinge:
a Remove the M2.5x4.0 screws that secure display hinges [1].
b Remove the display hinges from the display cover [2].
Installing the display hinge
NOTE
: For non touch systems perform following steps.
1 Place the display hinge in its slot on the display cover.
2 Replace the M2.5x4.0 screws to secure the display hinge.
3 Install the:
a display panel
b display bezel
c display assembly
d palmrest
e keyboard
f hard drive
g base cover
h battery
i battery cover
50
Disassembly and reassembly
