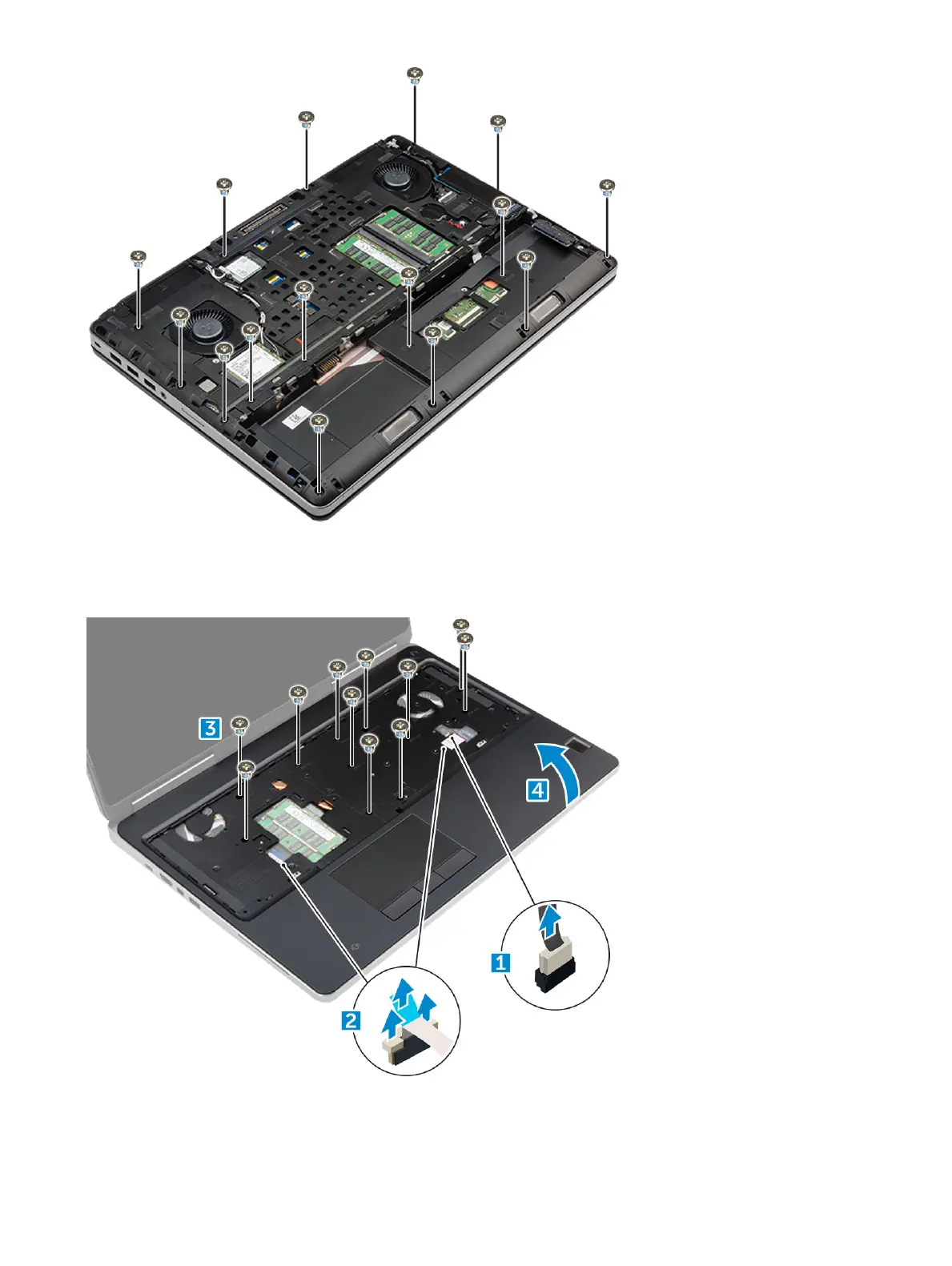

4 To remove palmrest:
a Lift the tab and disconnect the fan cable [1] and system board cable [ 2].
b Remove the 11 screws (M2.5x5.0, M2.0x3.0) that secure the palmrest to the computer [3].
c By using plastic scribe release the tabs on the edges of the palmrest and remove the palmrest from the computer [4].
