Dell Precision Workstation 450 - Installing the Microprocessor Airflow Shroud

Microprocessor Airflow Shroud 101
Installing the Microprocessor Airflow Shroud
1 Insert the bottom anchor tabs into the anchor slots.
2 Align and insert the side anchor tabs into the anchor slots.

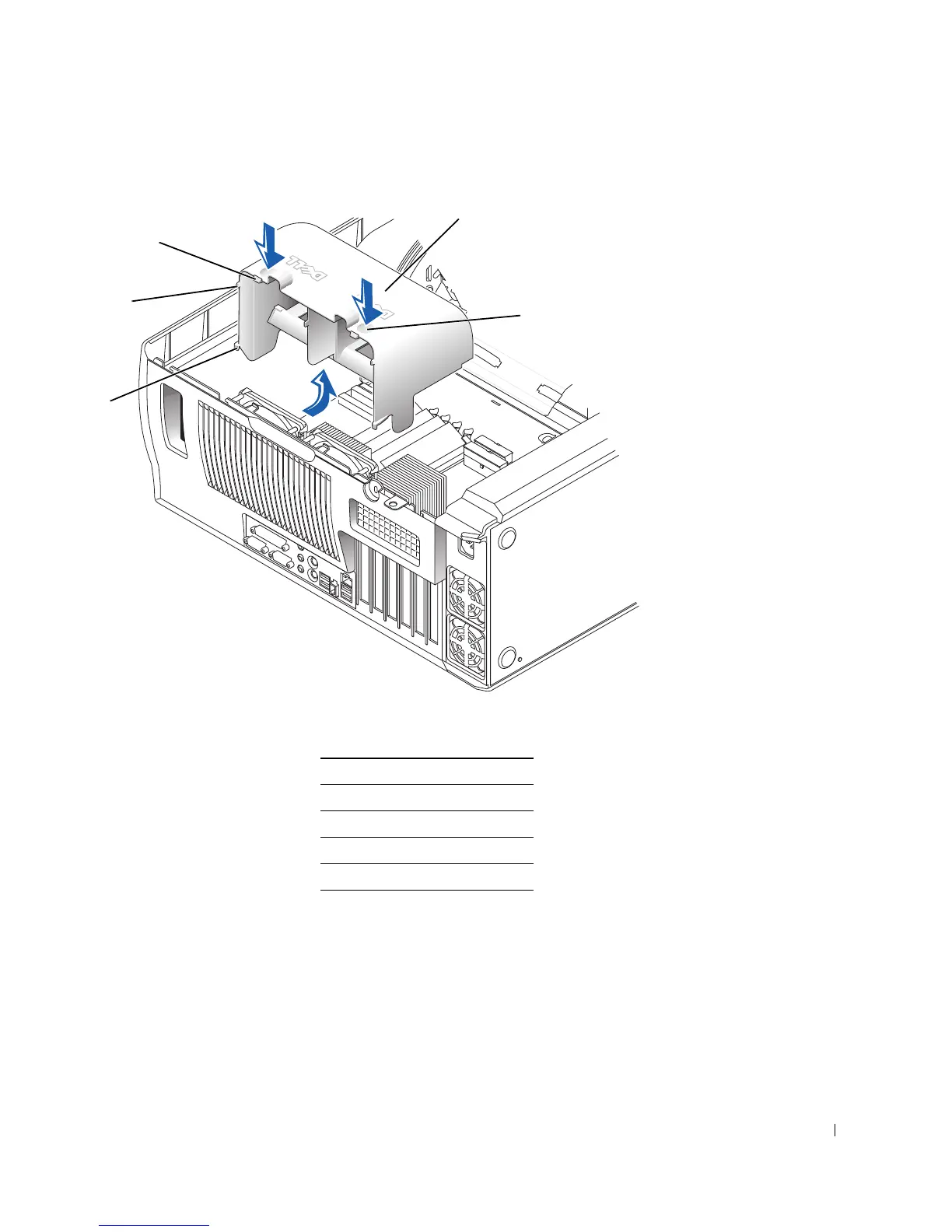

1 airflow shroud
2 indentations (2)
3 bottom anchor tabs (2)
4 side anchor tabs (2)
5 top anchor tabs (2)
5
3
4
1
2
