Microprocessor 165
9 Pull the release lever straight up until the microprocessor is released.
NOTICE: Be careful not to bend any of the pins when you remove the microprocessor from the
socket. Bending the pins can permanently damage the microprocessor.
10
Remove the microprocessor from the socket.
If you are replacing the microprocessor, leave the release lever extended in the release
position so that the socket is ready for the new microprocessor and go to "Installing the
Microprocessor."
1 retention module clips (2)
2 tabs (2 on each retention module
clip)
3 heat sink
4 microprocessor socket
5 retention module
6 lever

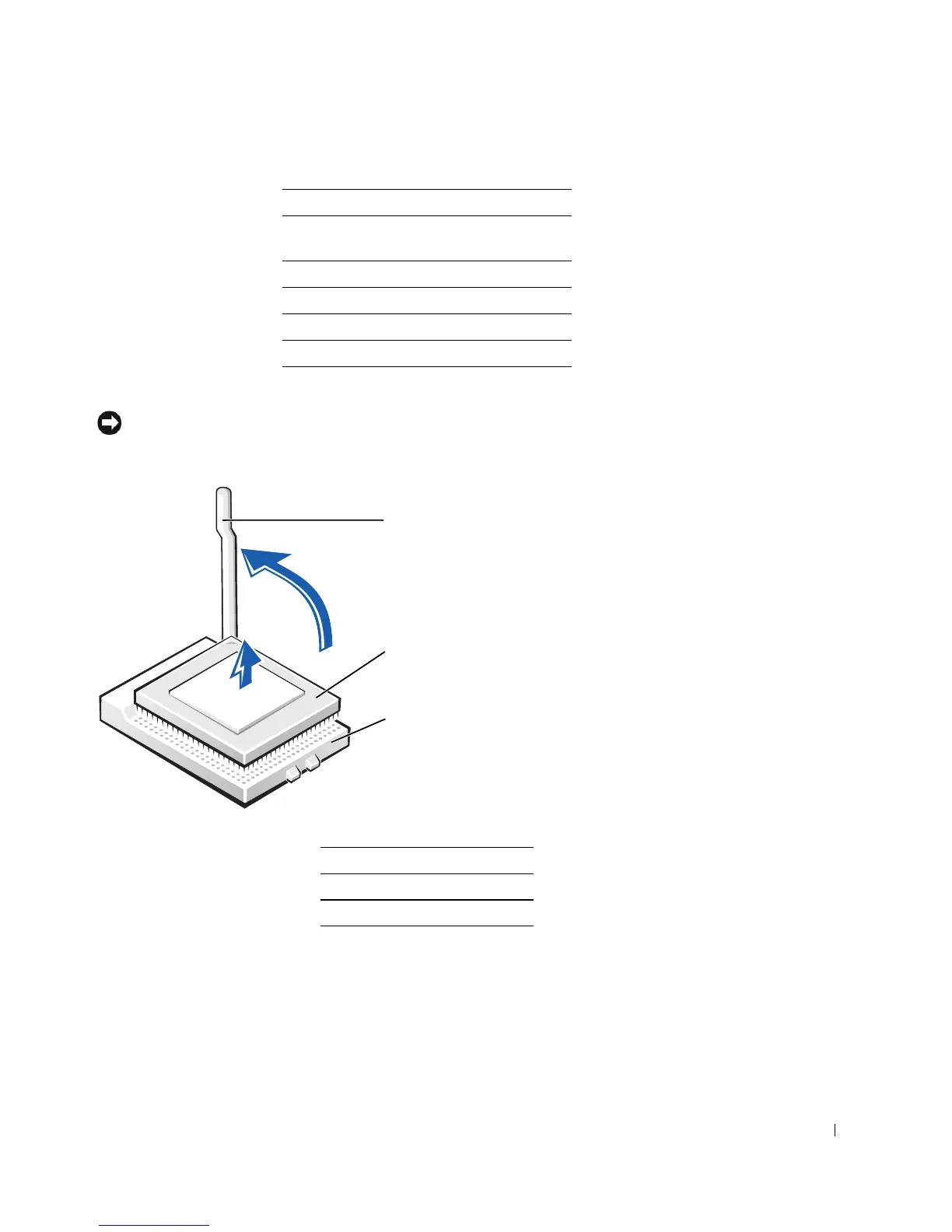

1 release lever
2 microprocessor
3 socket
