Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary depending on the configuration ordered.

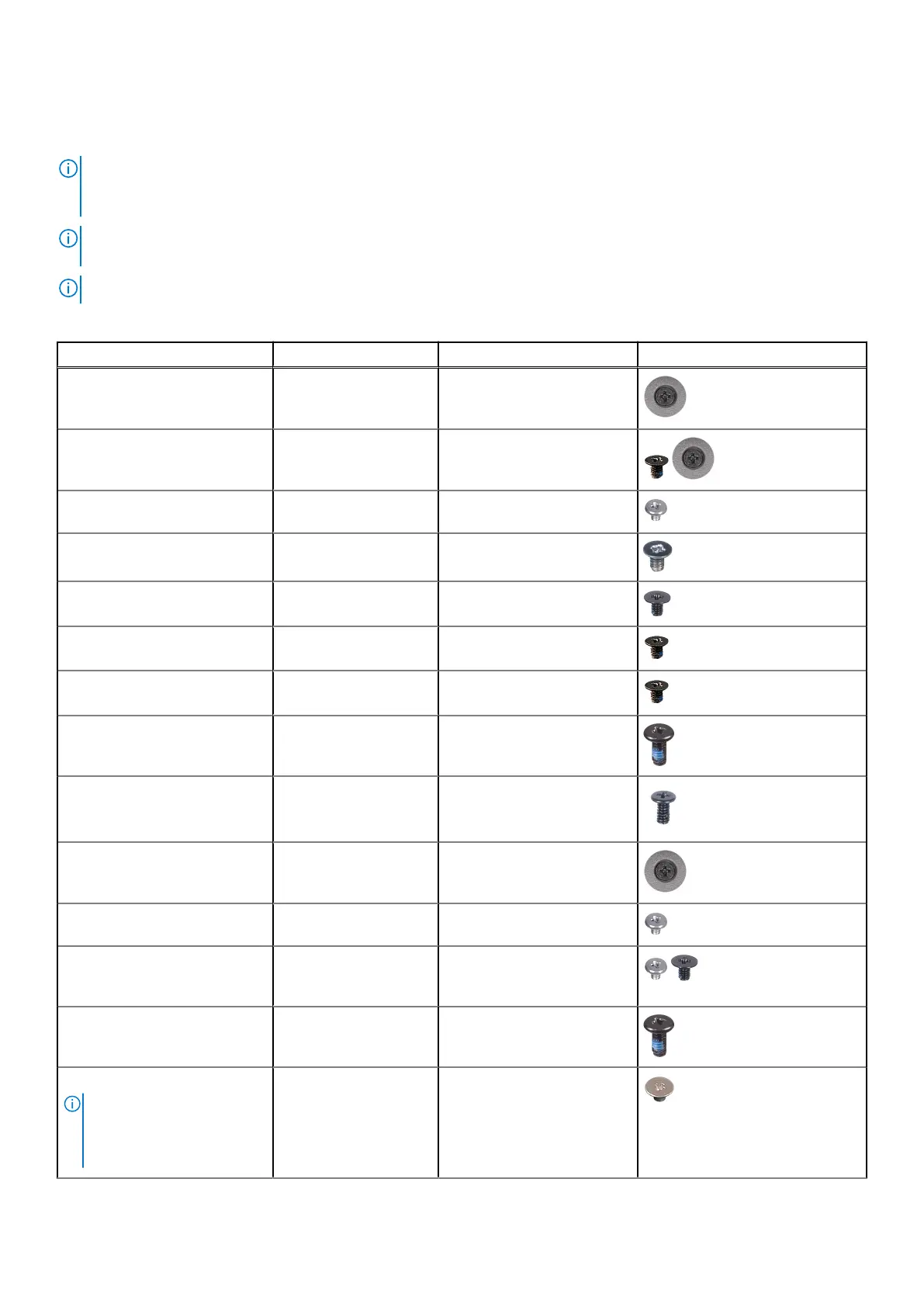

Table 32. Screw list
Component Screw type Quantity Screw image
Base cover Captive screws
8
Battery
M2x4
Captive screws
1
4
Wireless card M2x2.5
1
5G WWAN-card bracket M1.6x3.2
1
Solid state drive bracket M2x3 2
M.2 2230 Solid state drive M2x4
1
M.2 2280 Solid state drive M2x4
1
Fan M2x4
3
Speaker M1.6x3 4
Heat sink Captive screw 4
Display-cable bracket M2x2.5
2
System board
M2x2.5
M2x3
3
8
Type-C bracket M2x3.5
2
Power button
NOTE: Applicable to
computer shipped both with
and without a fingerprint
reader
M2x2
2
38 Working inside your computer
