Dell Pro 16 Plus - Camera Module; Removing the Camera Module

Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the display cable and provide a visual representation of the installation procedure.

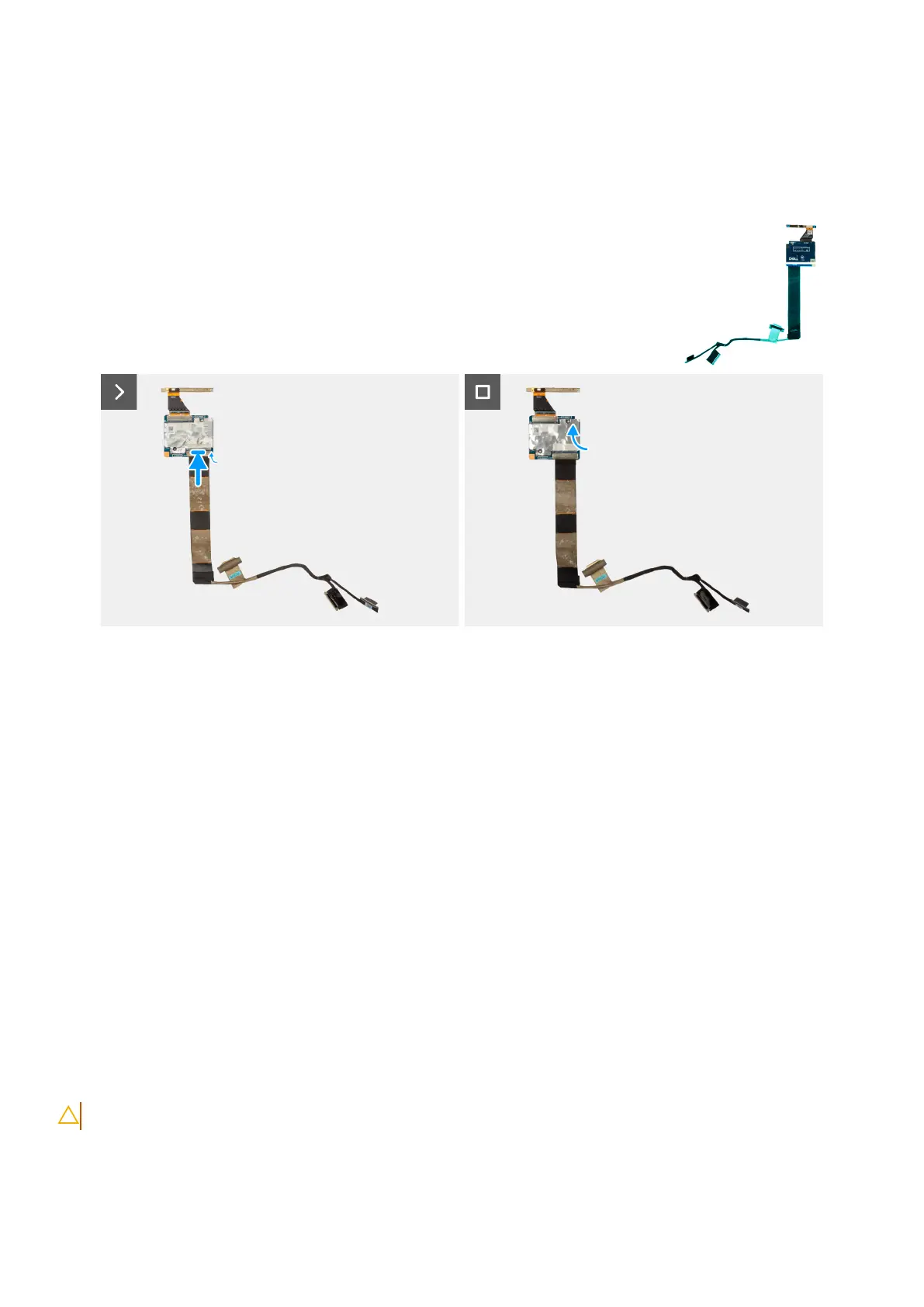

Figure 37. Installing the display cable
Steps
1. Connect the display cable to the connector on the camera.
2. Adhere the display cable to the display back cover.
3. Adhere the tape that secures the display cable to the display back cover.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the 5G WWAN card
5. Install the base cover.
6. Install the SIM card.
7. Follow the procedure in After working inside your computer
8. .
Camera module
Removing the camera module
CAUTION: The information in this removal section is intended for authorized service technicians only.
Removing and installing Field Replaceable Units (FRUs) 85
