Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the base cover
4. Remove the 5G WWAN card.
5. Remove the display assembly.
6. Remove the display bezel
7. Remove the display panel.
About this task

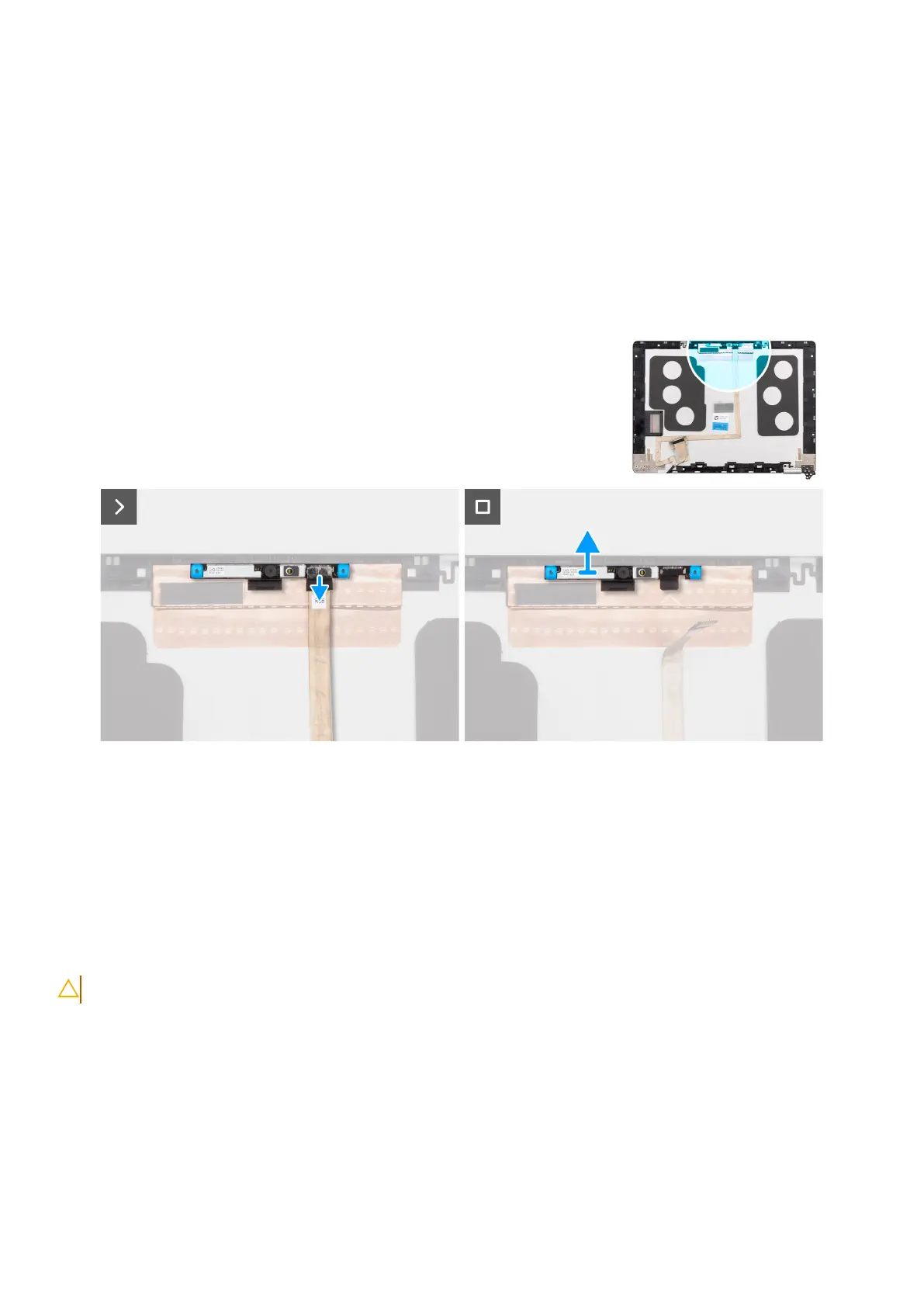

The following images indicate the location of the camera module and provide a visual representation of the removal procedure.
Figure 38. Removing the camera module
Steps
1. Peel the tape that secures the camera cable to the display back cover.
2. Disconnect the camera cable from the camera.
3. Carefully lift up the camera module starting from the prying point at the bottom edge of the camera module.
4. Lift the camera module from the display back cover.
Installing the camera module
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the camera module and provide a visual representation of the installation
procedure.
