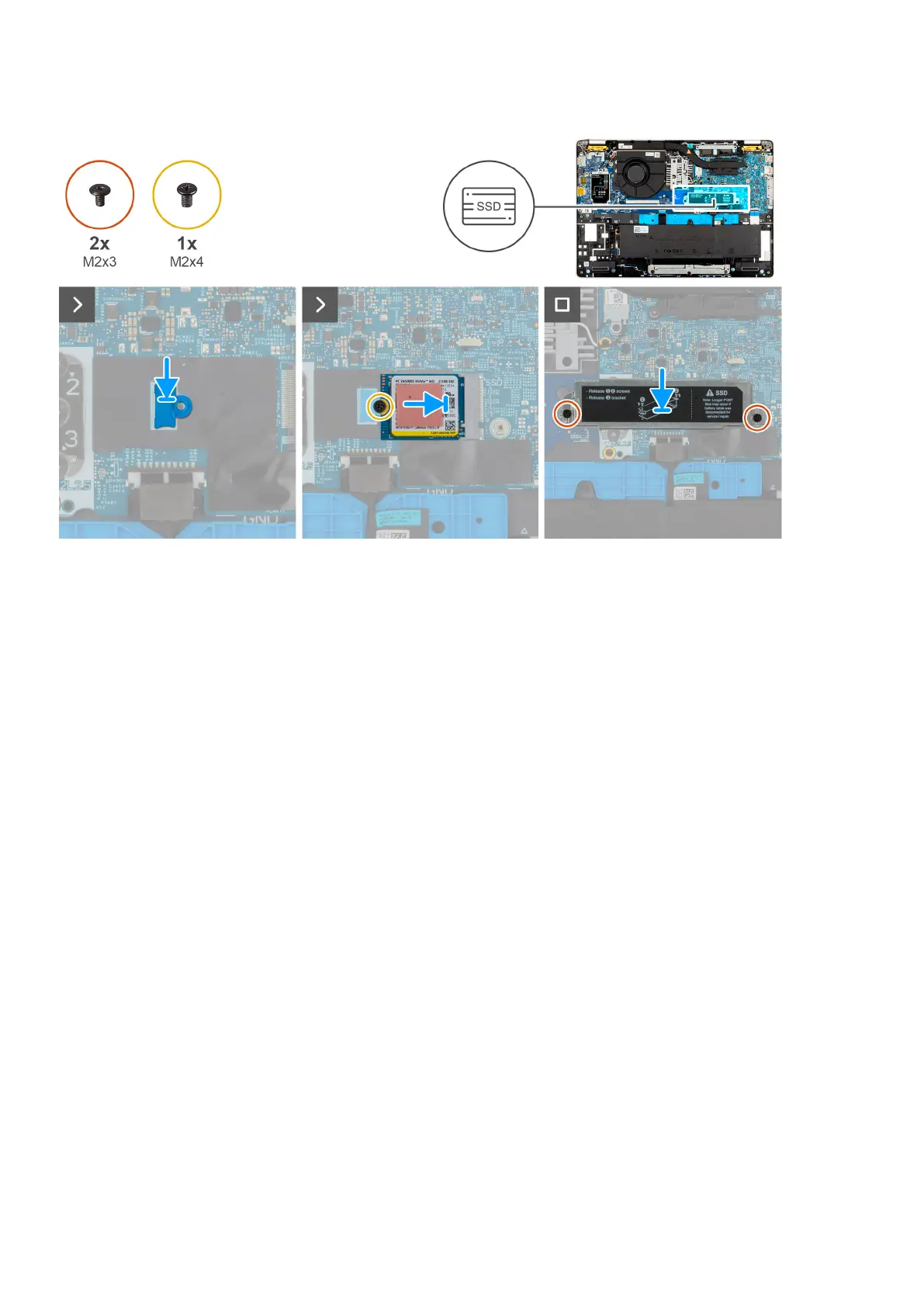

Figure 13. Installing the M.2 2230 SSD
Steps
1. Place the M.2 2230 SSD mounting bracket on its slot on the palm-rest assembly.
2. Align the notch on the M.2 2230 SSD with the tab on the M.2 2230 SSD slot.
3. Slide the M.2 2230 SSD into the M.2 2230 SSD slot.
4. Replace the screw (M2x3) that secures the M.2 2230 SSD to the palm-rest assembly.
5. Place the SSD bracket on its slot on the palm-rest assembly and replace the two (M2x3) screws.
Next steps
1. Install the base cover.
2. Install the sim card tray, if applicable.
3. Follow the procedure in After working inside your computer.
Removing the M.2 2280 SSD
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card, if applicable..
3. Remove the base cover.
About this task
The following images indicate the location of the M.2 2280 SSD and provide a visual representation of the removal procedure.
