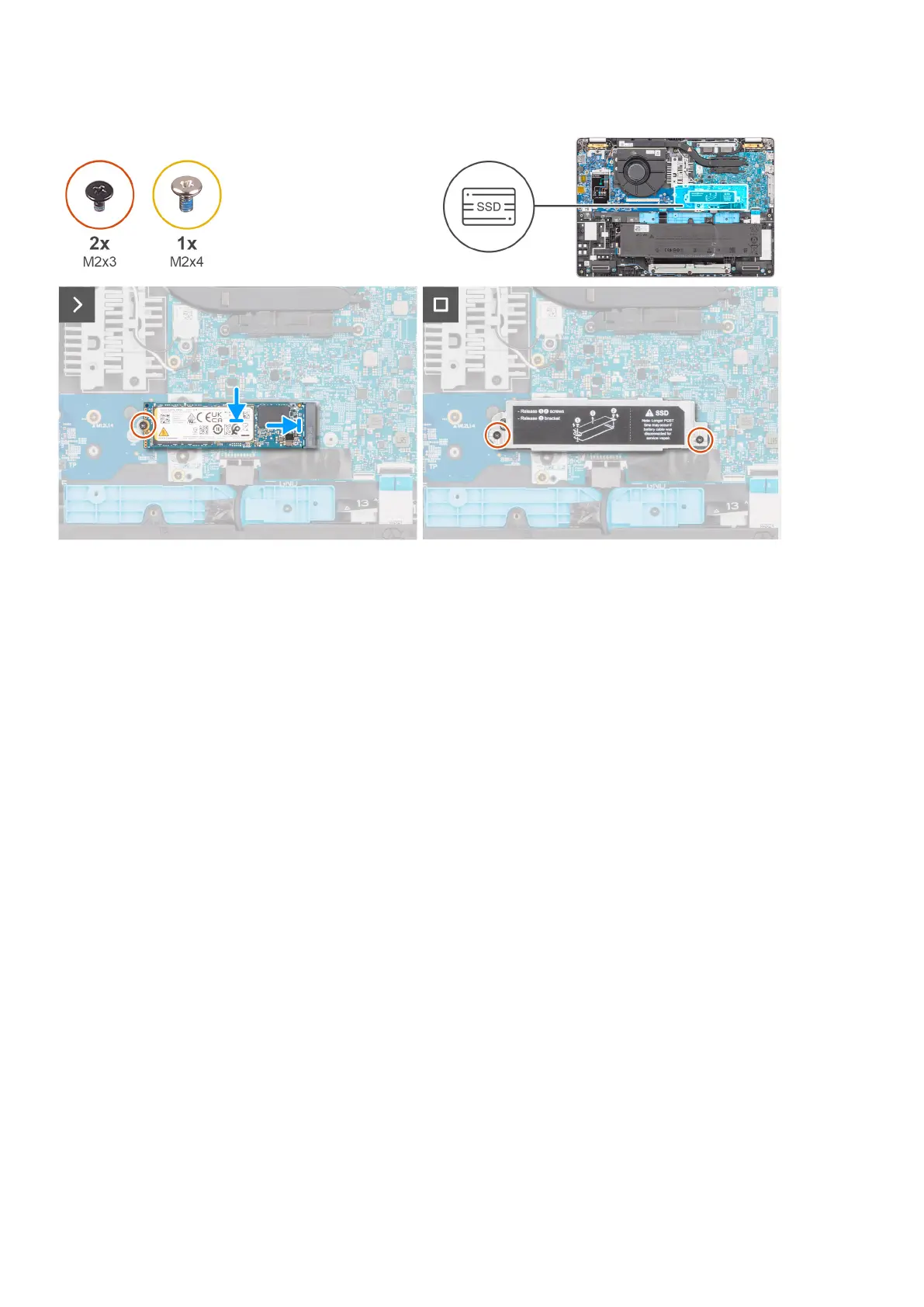

Figure 15. Installing the M.2 2280 SSD
Steps
1. Align the notch on the M.2 2280 SSD with the tab on the M.2 2280 SSD slot.
2. Slide the M.2 2280 SSD into the M.2 2280 SSD slot.
3. Replace the screw (M2x3) that secures the M.2 2280 SSD to the palm-rest assembly.
4. Place the M.2 2280 SSD bracket on its slot on the palm-rest assembly and replace the two (M2x3) screws.
Next steps
1. Install the base cover.
2. Install the SIM card.
3. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card tray, if applicable.
3. Remove the base cover.
About this task
The following images indicate the location of the speakers and provide a visual representation of the removal procedure.
