Dell Pro 16 Plus - Installing the Display Back Cover

8. Remove the display hinge cap.
9. Remove the display cable.
About this task
The following images indicate the location of the display back cover and provide a visual representation of the removal
procedure.

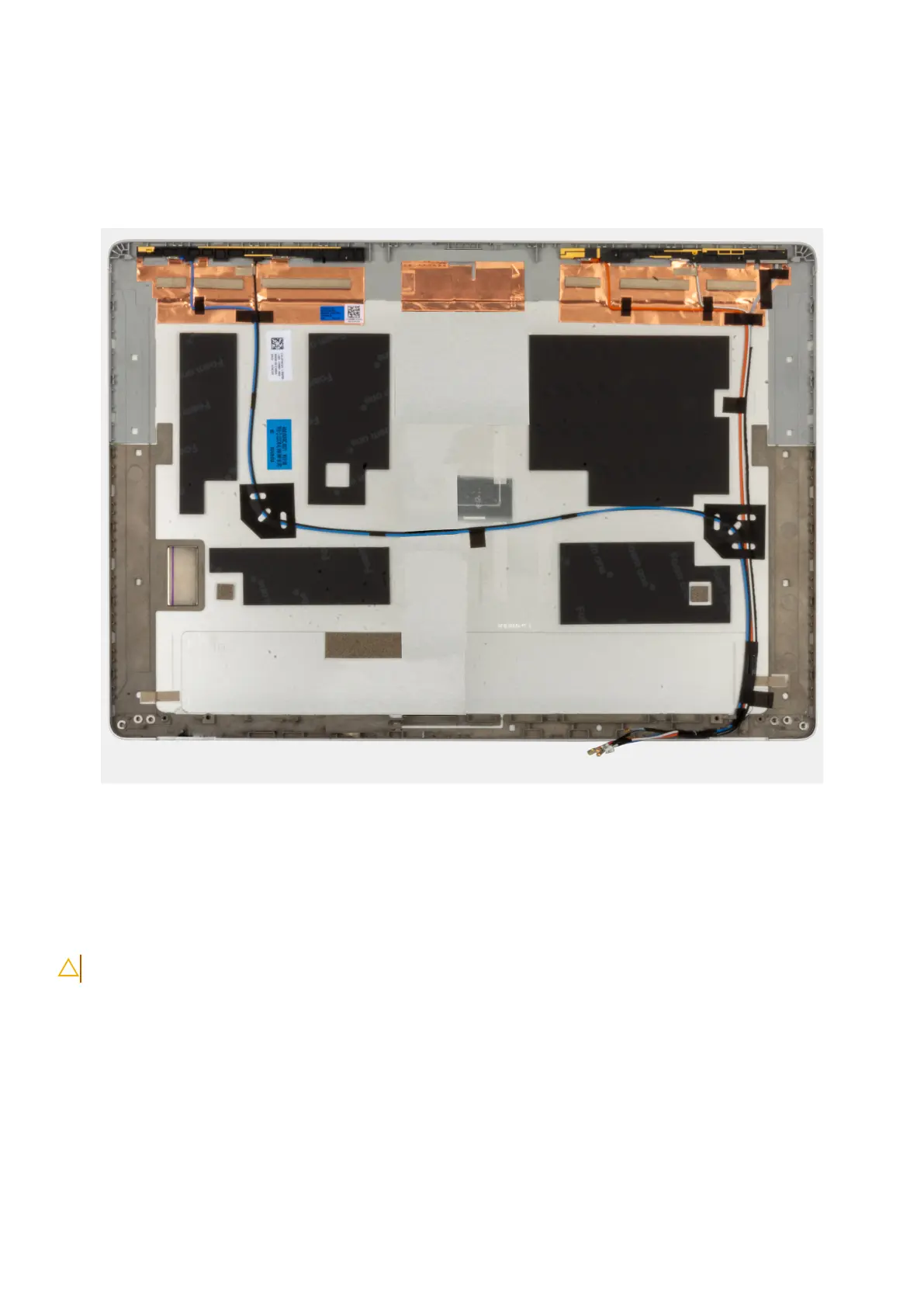

Figure 40. Removing the display back cover
Steps
Remove all the components mentioned in the pre-requisites to get the display back cover.
Installing the display back cover
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the display back cover and provide a visual representation of the installation
procedure.
