3. Remove the screw (M2x4) that secures the battery to the palm-rest assembly.
4. Lift the battery off the palm-rest assembly.

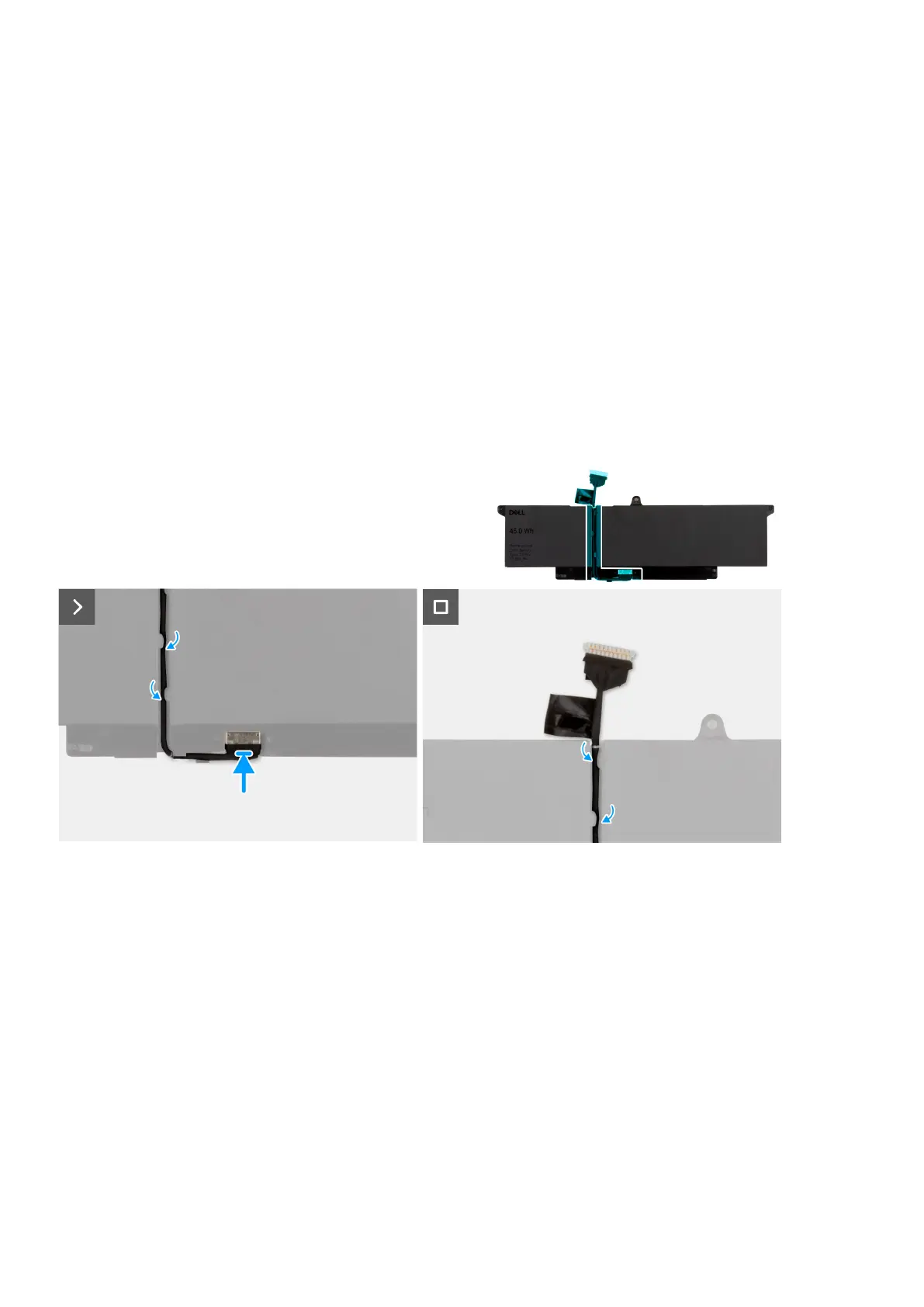

5. Remove the battery cable from the routing guides on the battery.
6. Disconnect the battery cable from the connector on the battery.
7. Remove the battery cable from the battery.
8. Press and hold the power button for five seconds to ground the computer and drain the flea power.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the battery and provide a visual representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs) 51
