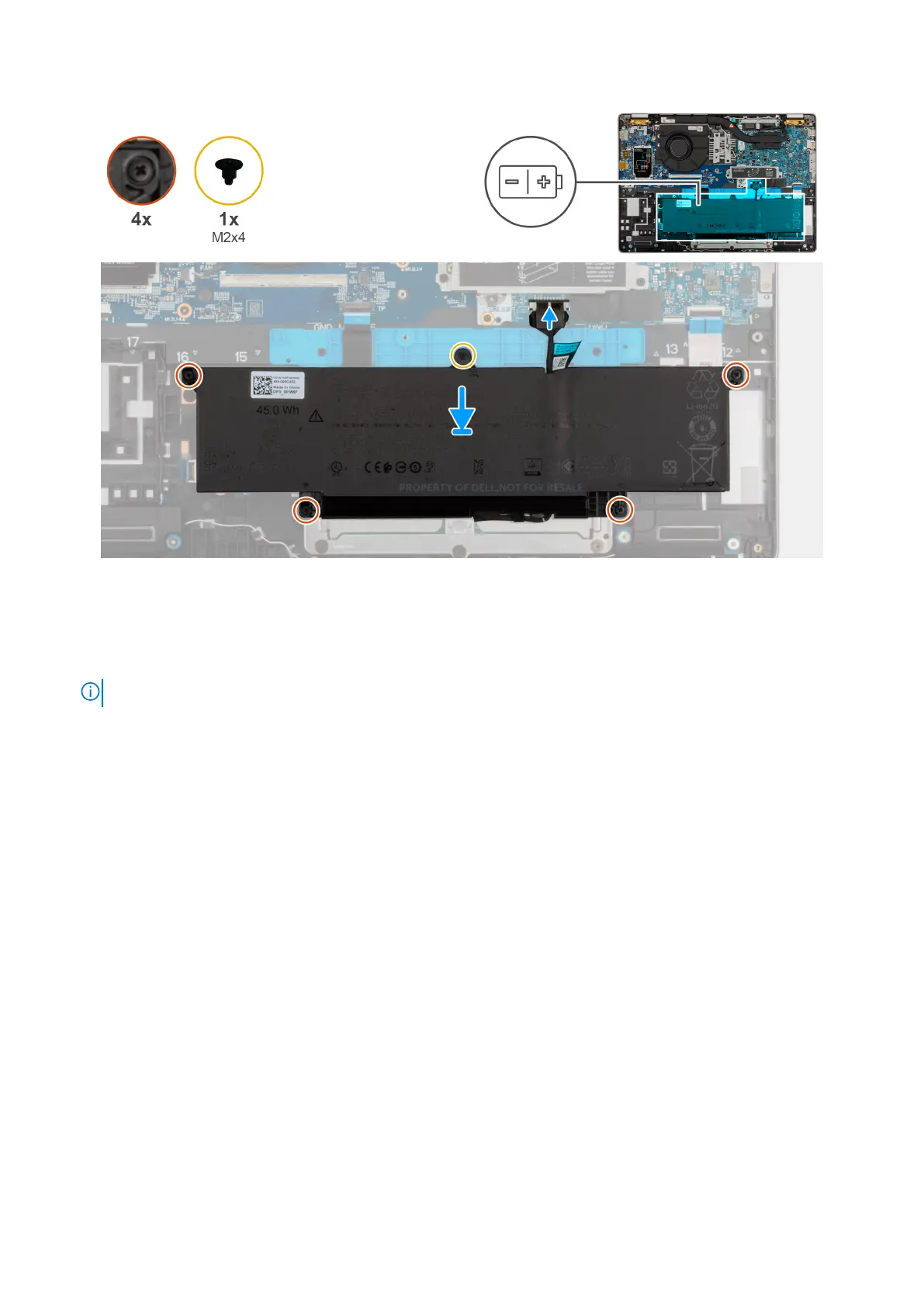

Figure 9. Installing the battery
Steps
1. 1. Connect the battery cable to the connector on the battery.
2. 2. Route the battery cable along the routing guides on the battery.
NOTE: NOTE: When reinstalling the battery cable, ensure that the cable is properly routed under the securing guides.
3. Using the alignment posts, place the battery on the palm-rest assembly.
4. Align the screw holes on the battery with the screw holes on the palm-rest assembly.
5. Tighten the four captive screws that secure the battery to the palm-rest assembly.
6. Replace the screw (M2x4) that secures the battery to the palm-rest assembly.
7. Connect the battery cable to the battery cable connector (BATT1) on the system board.
Next steps
1. Install the base cover.
2. Install the SIM card tray, if applicable.
3. Follow the procedure in After working inside your computer.
Wireless Wide Area Network (WWAN) card
Removing the 5G WWAN card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card tray, if applicable.
3. Remove the base cover.
52
Removing and installing Customer Replaceable Units (CRUs)
