Installing the display bezel
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the display bezel and provide a visual representation of the installation procedure.

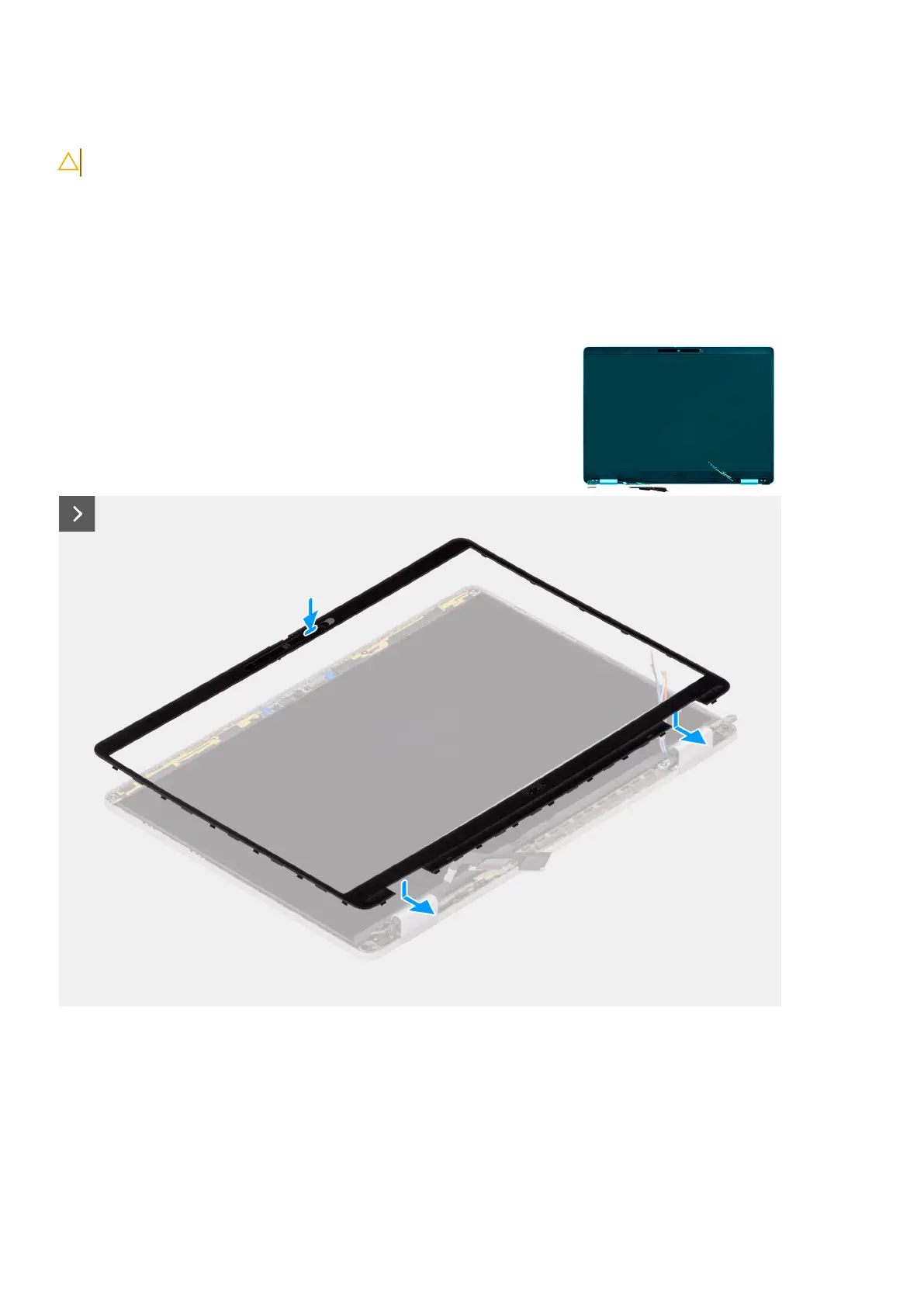

Figure 29. Installing the display bezel
Steps
1. Align and place the display bezel on the display assembly.
2. Gently press along the edges of the display bezel to secure it with the clips on the display assembly.
Next steps
1. Install the display assembly.
2. Install the 5G WWAN card.
Removing and installing Field Replaceable Units (FRUs)
75
