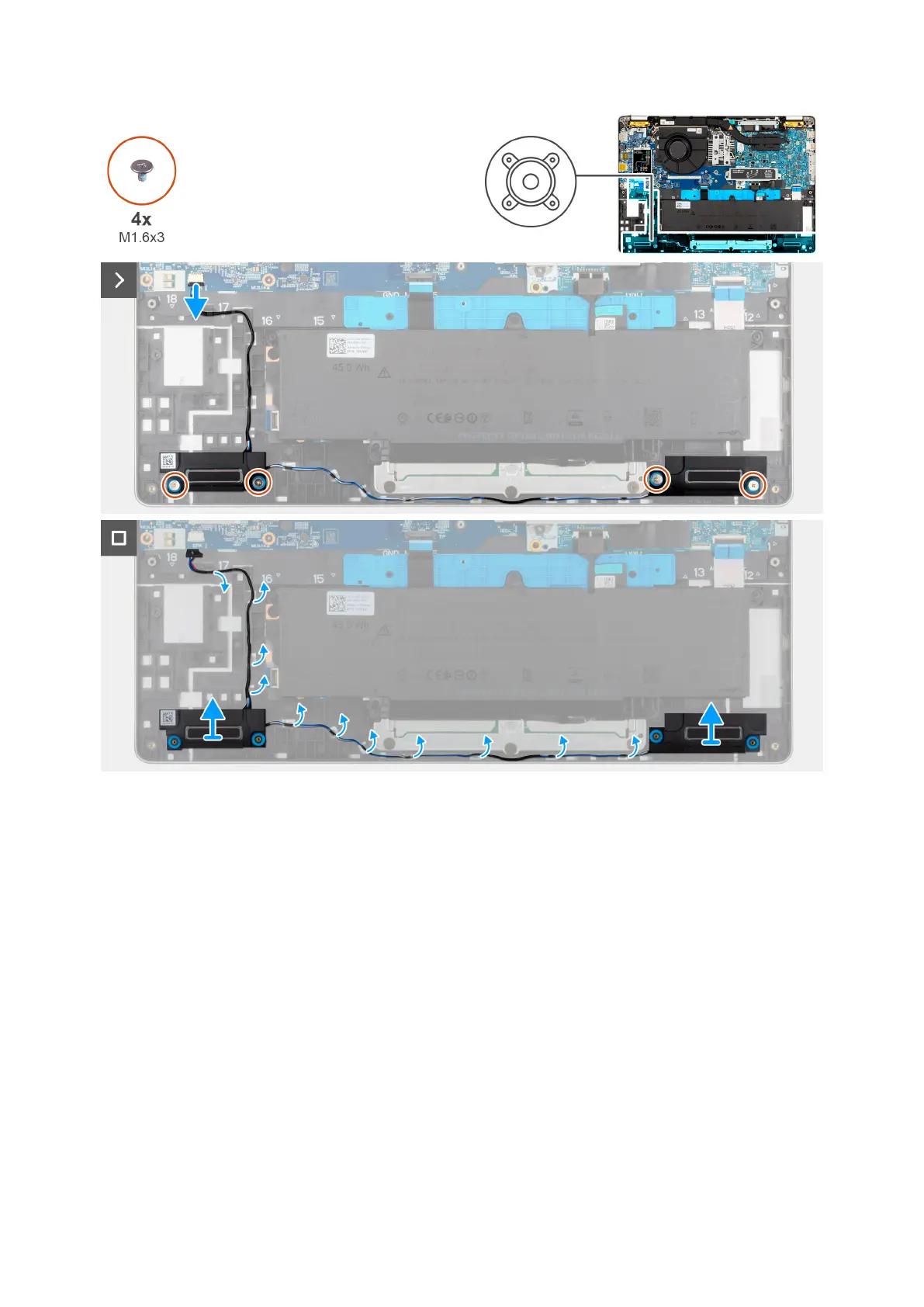

Figure 16. Removing the speakers
Steps
1. Remove the four screw (M1.6x3) that secures the speakers to the palm-rest assembly.
2. Disconnect the speaker cable from the I/O board.
3. Remove the speaker cables from the routing guides on the palm-rest assembly.
4. Lift the right and left speakers, along with its cable, off the palm-rest assembly.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the speakers and provide a visual representation of the installation procedure.
60
Removing and installing Customer Replaceable Units (CRUs)
