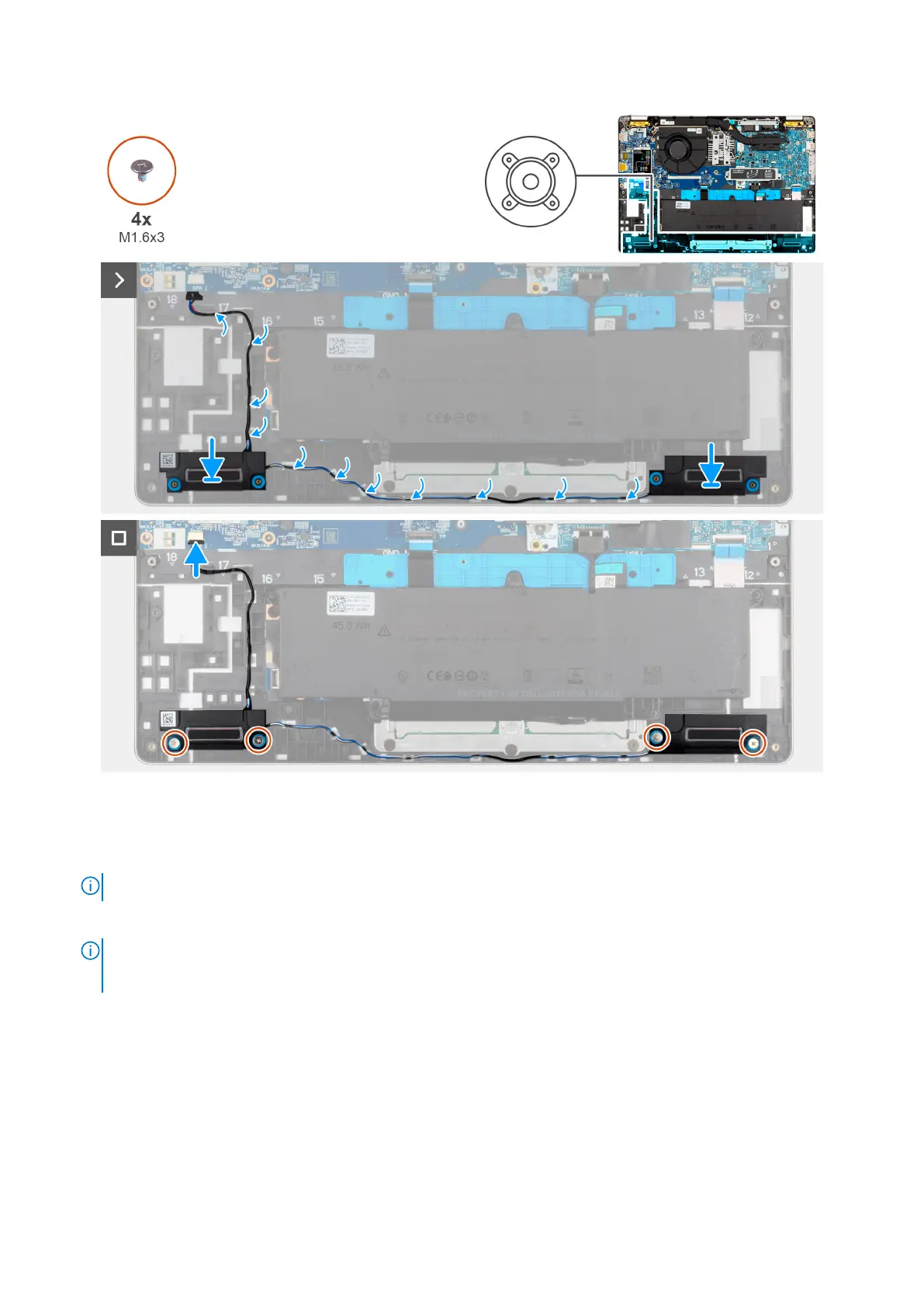

Figure 17. Installing the speakers
Steps
1. Using the alignment posts, place the left and right speakers into their slots on the palm-rest assembly.
NOTE: To properly position the speakers, secure the rubber grommets into the hooks.
2. Route the speaker cable through the routing guides on the palm-rest assembly.
NOTE:
Ensure that the rubber grommets are seated into the slot and installed on the speakers properly.
Figure 18. Rubber grommets
3. Replace the four screws (M1.6x3) that secure the speakers to the palm-rest assembly.
4. Connect the speaker cable to the I/O board.
Next steps
1. Install the base cover.
2. Install the SIM-card tray, if applicable.
3. Follow the procedure in After working inside your computer.
Removing and installing Customer Replaceable Units (CRUs)
61
