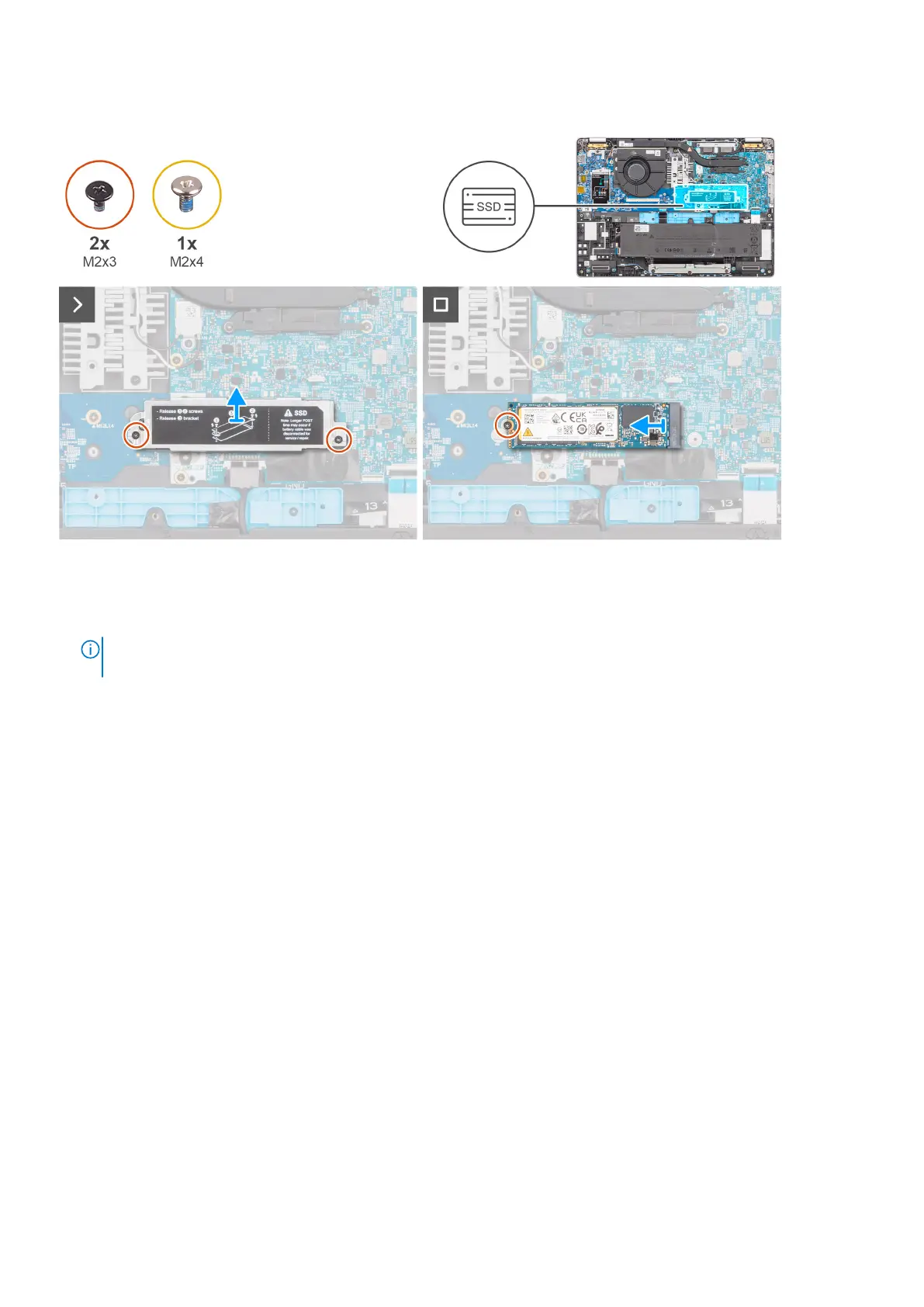

Figure 14. Removing the M.2 2280 SSD
Steps
1. Remove the two screws (M2x3) that secures the SSD bracket to the palm-rest assembly.
2. Lift the M.2 2280 SSD bracket off the SSD slot.
NOTE:
If the thermal pads get separated from the shielding cover or gets adhered to the SSD while replacing the SSD,
the technicians must readhere the thermal pad to the SSD cover before reinstalling it to the computer.
3. Remove the screw (M2x4) that secures the M.2280 SSD to the palm-rest assembly.
4. Slide and remove the M.2 2280 SSD from the palm-rest assembly.
Installing the M.2 2280 SSD
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the M.2 2280 SSD and provide a visual representation of the installation procedure.
58
Removing and installing Customer Replaceable Units (CRUs)
