Display cable
Removing the display cable
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the base cover
4. Remove the 5G WWAN card.
5. Remove the display assembly.
6. Remove the display bezel
7. Remove the display panel.
About this task

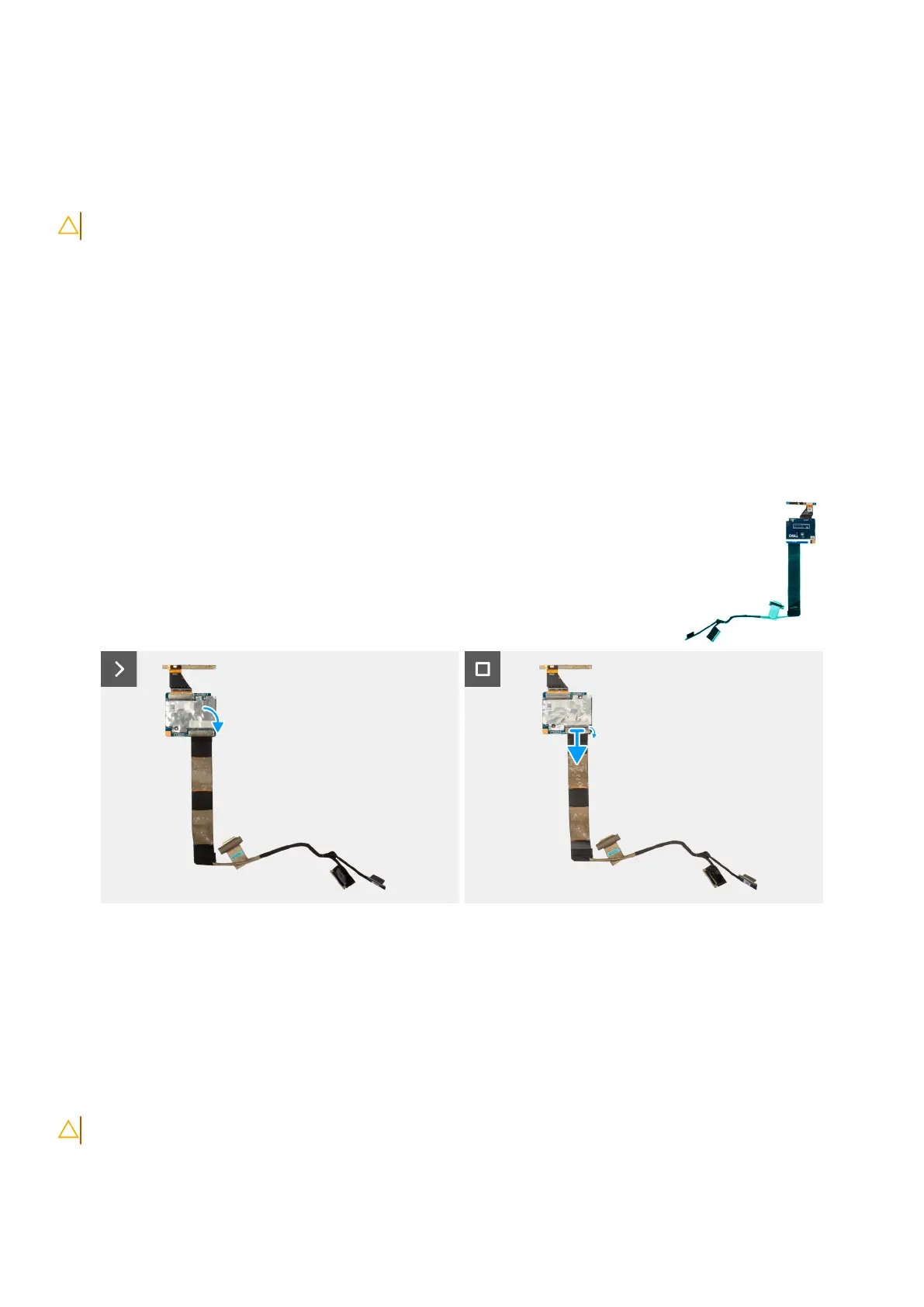

The following images indicate the location of the display cable and provide a visual representation of the removal procedure.
Figure 36. Removing the display cable
Steps
1. Peel the tape that secures the display cable to the display back cover.
2. Disconnect the display cable from the camera module.
3. Peel the display cable to release it from adhesive and lift the display cable off the display back cover.
Installing the display cable
CAUTION: The information in this installation section is intended for authorized service technicians only.
84 Removing and installing Field Replaceable Units (FRUs)
