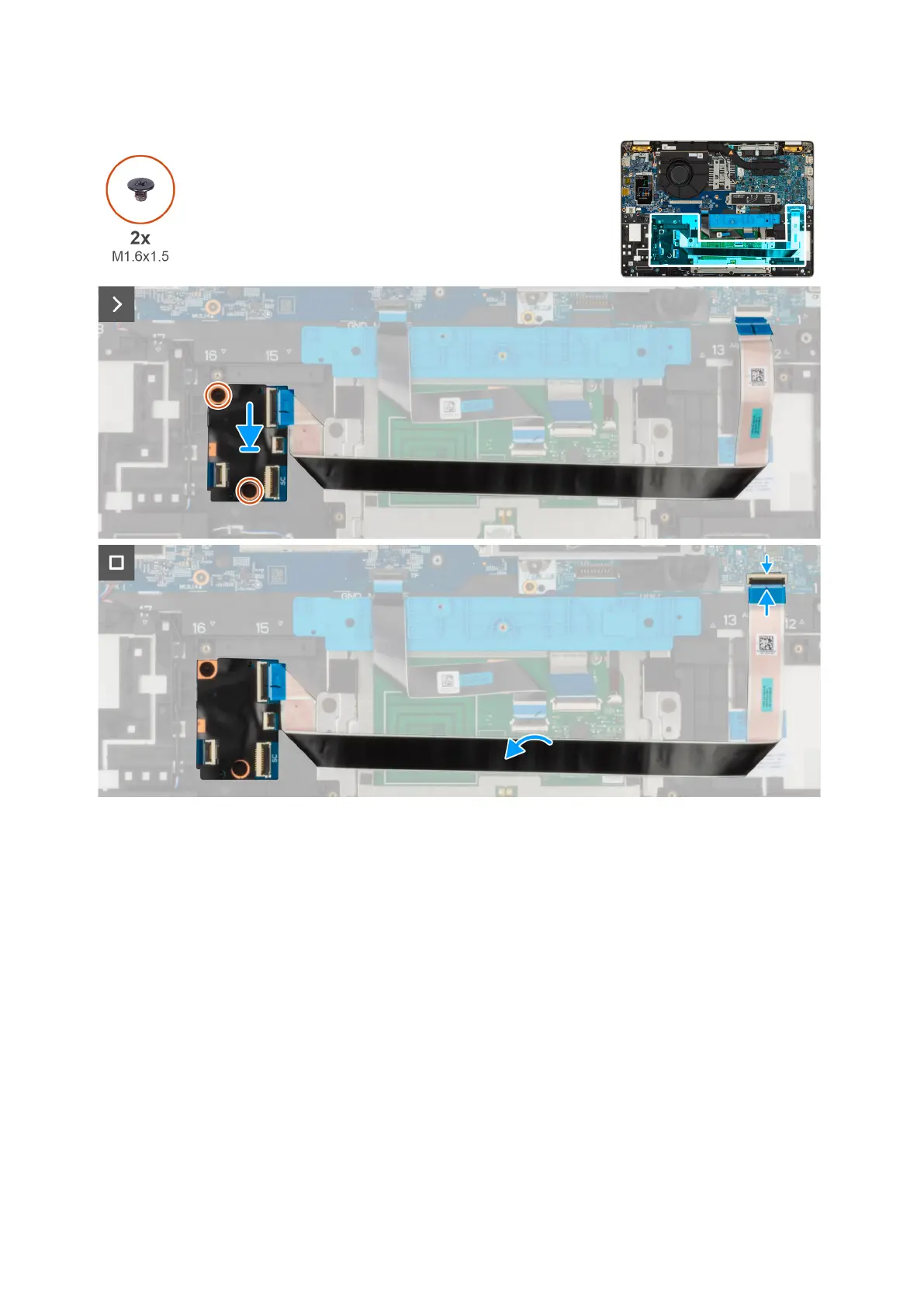

Figure 45. Installing the USH daughter
board
Steps
1. Place the USH daughter board on the chassis.
2. Replace the two screws (M1.6x1.5) that secure the USH daughter board in place.
3. Adhere the USH daughter board flexible flat cable to the I/O daughter board.
4. Connect the smart card reader FFC to the connector on the USH daughter board.
Next steps
1. Install the battery.
2. Install the base cover.
3. Install the SIM card.
4. Follow the procedure in After working inside your computer
