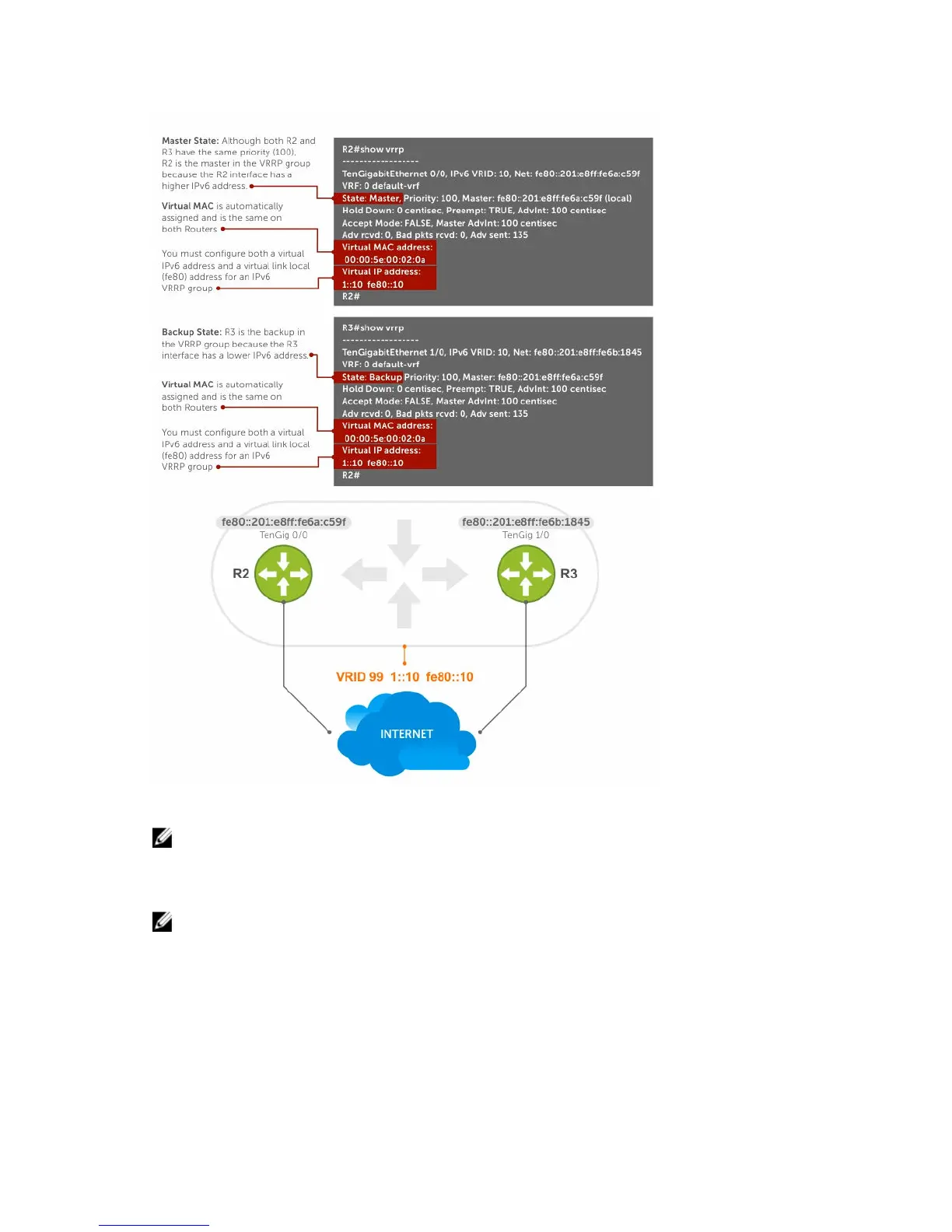

Figure 146. VRRP for IPv6 Topology
NOTE: This example does not contain comprehensive directions and is intended to provide
guidance for only a typical VRRP configuration. You can copy and paste from the example to your
CLI. Be sure you make the necessary changes to support your own IP addresses, interfaces, names,
and so on.
NOTE: In a VRRP or VRRPv3 group, if two routers come up with the same priority and another
router already has MASTER status, the router with master status continues to be master even if one
of two routers has a higher IP or IPv6 address.
Router 2
R2(conf)#interface tengigabitethernet 1/1/1
R2(conf-if-te-1/1/1)#no ip address
R2(conf-if-te-1/1/1)#ipv6 address 1::1/64
R2(conf-if-te-1/1/1)#vrrp-group 10
