Chapter 8 Logic Instructions
8_

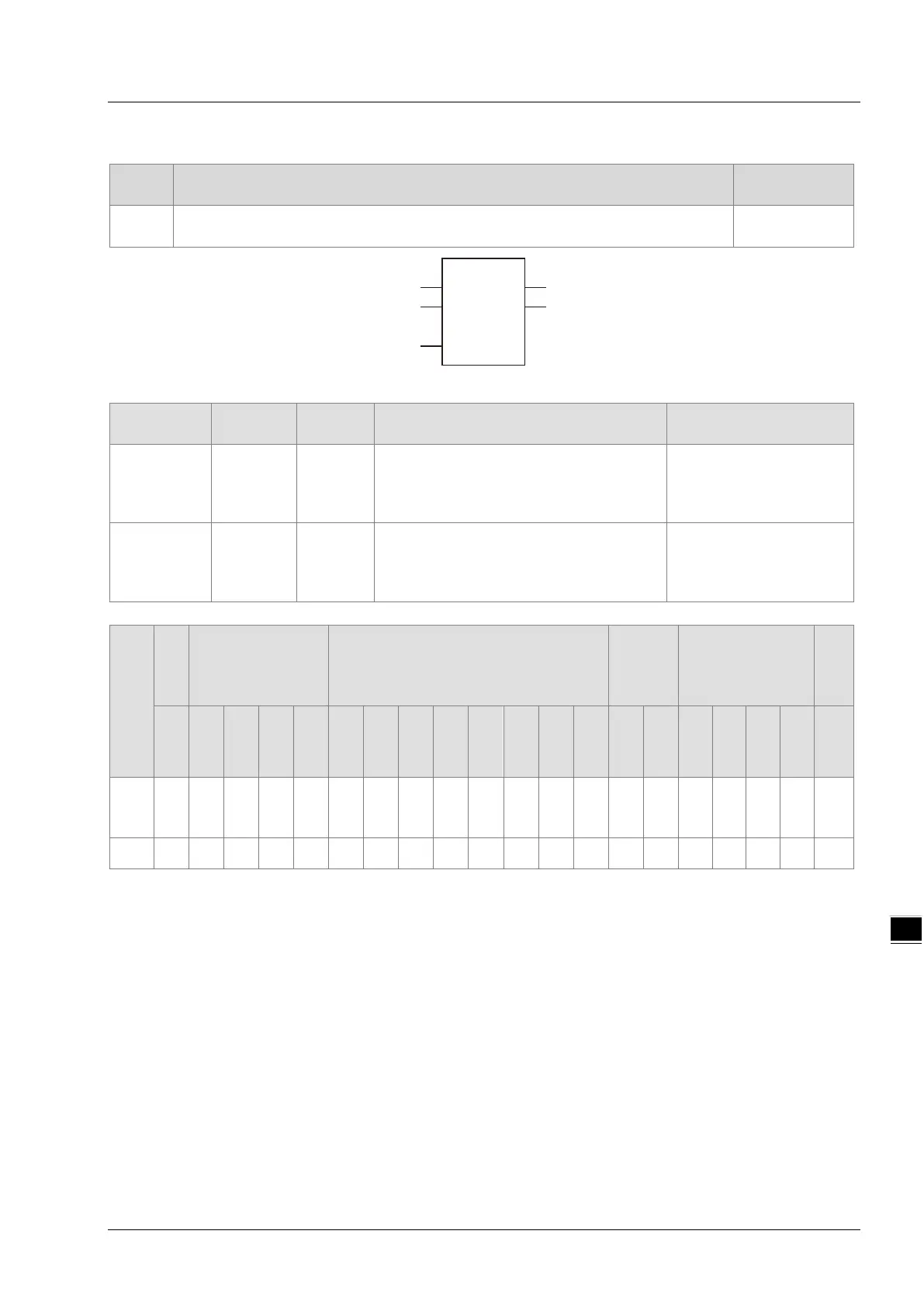

8.9.2 OR
FB/FC
Explanation
Applicable
model
FC
OR is used for performing a logical OR operation of two or more variables or
constants.
DVP15MC11T
 Parameters
Parameter
name
Meaning
Input/
Output
Description Valid range
In1 to InN Operand Input
The number of operands can be
increased or decreased through the
programming software. Maximum: 8.
Minimum: 2. That is N=2 ~ 8.
Depends on the data type
of the variable that the
input parameter is
connected to.
Out
Operation
result
Output OR operation result of In1 ~ InN
Depends on the data type
of the variable that the
output parameter is
connected to.
Boolean
Bit string Integer
Real
number
Time, date
String
BOOL BYTE WORD DWORD LWORD USINT UINT UDINT ULINT SINT INT DINT LINT REAL LREAL TIME DATE TOD DT STRING
In1
to
InN
● ● ● ● ● ● ● ● ●
Out
● ● ● ● ● ● ● ● ●
Note:
The symbol ● indicates that the parameter is allowed to connect to the variable or constant of the data type.
 Function Explanation

OR is used for performing a bitwise logical OR operation of two or more variables or constants and
the result is output to Out. That is Out= In1 OR In2 OR…OR InN.
The operational rule:
When corresponding bits of all input variables are all FALSE, the corresponding bit of the output
variable is FALSE. Otherwise, the corresponding bit of the output variable is TRUE.
OR
EN ENO
In1 Out
InN
.
.
.
.
..
8-113
